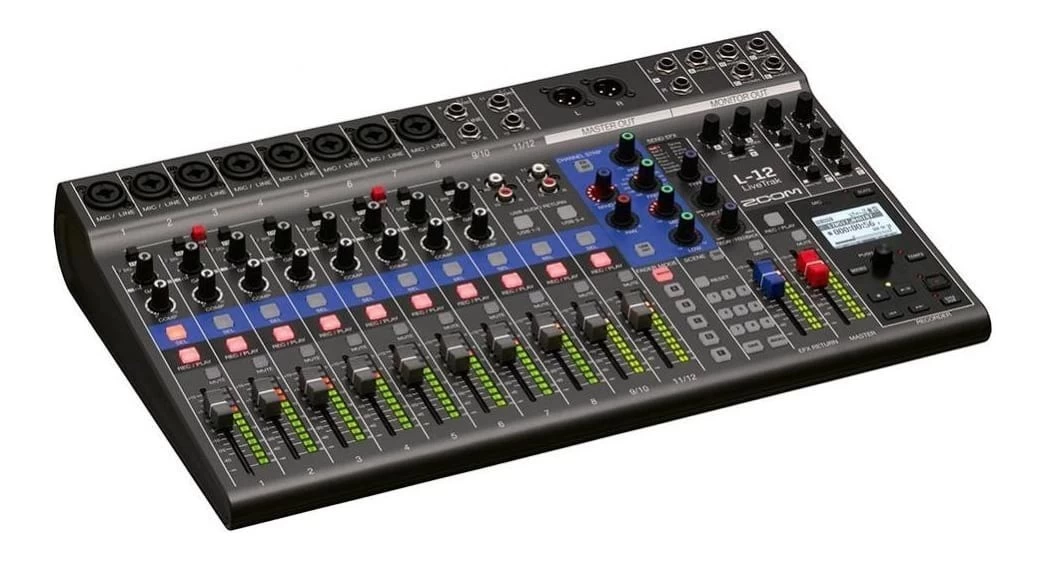

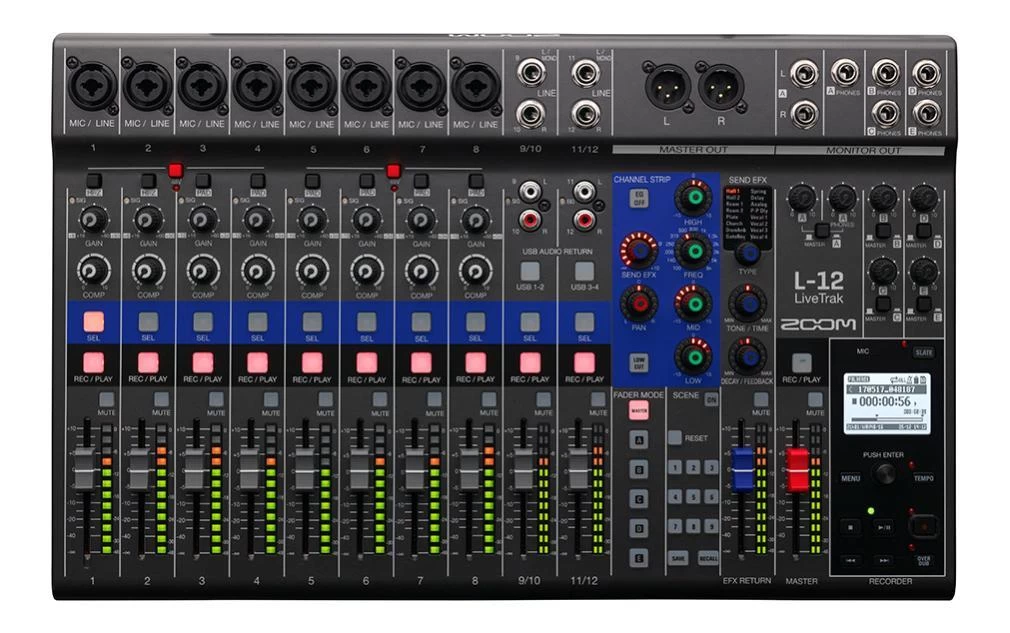

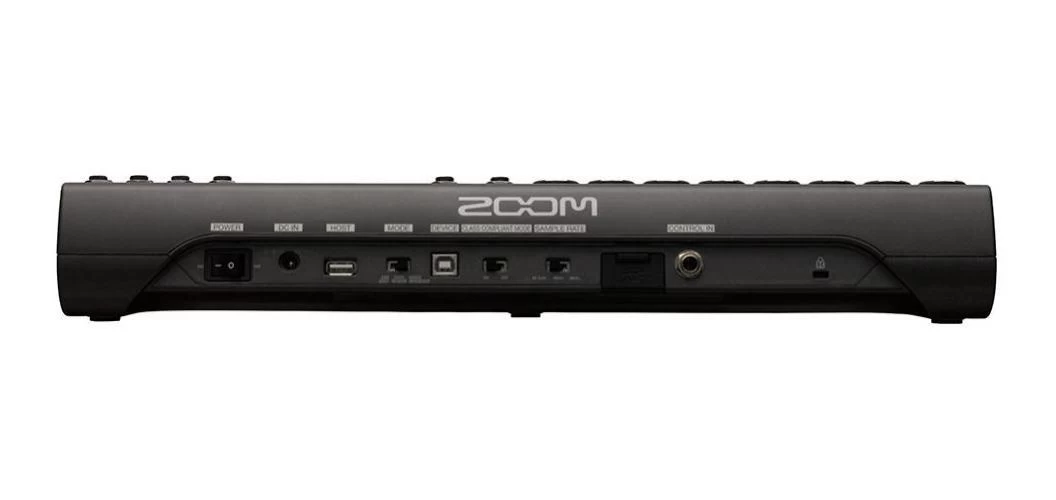

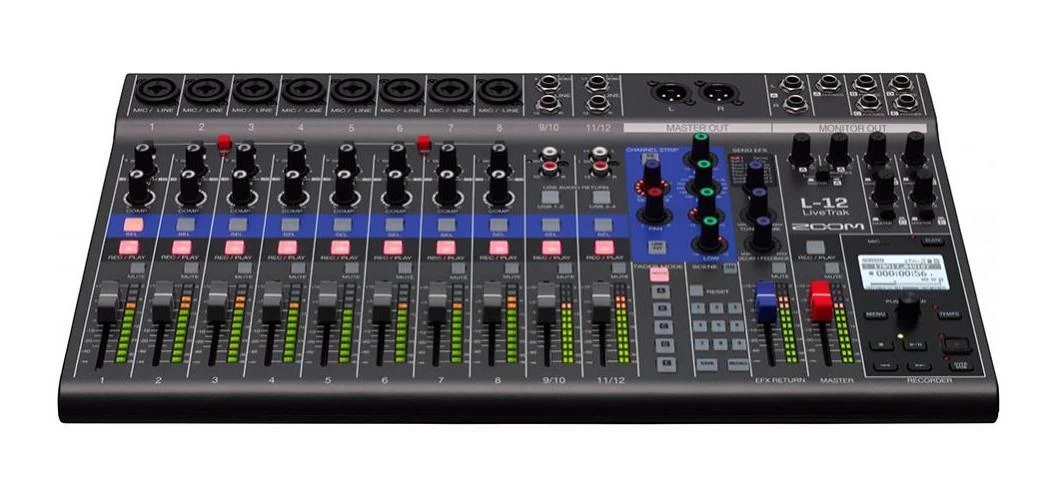

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface - Image 2

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface - Image 3

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface - Image 4

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface -Music Equipment Store ZM L 12 1

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface -Music Equipment Store ZM L 12 2

ZOOM LIVETRAK L-12 - Portable Multi-track Recorder / USB Interface -Music Equipment Store ZM L 12 3

Original price was: $312.00.Current price is: $97.99.

SKU: C3DHB 149127 Categories: Audio Interfaces, Recording, USB Audio Interface Tags: USB Audio Interface, Zoom

7 Days of Hassle-Free Returns
Shop with Zero Worries
Product guarantee 100% satisfaction
100% Quality Satisfaction

LiveTrak L-12 – All-In-One Portable Mixing, Monitoring and Recording
With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and multi-track record up to 12 discrete channels – all while providing five individual custom headphone mixes.

As a Live Mixer
LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated one knob compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Portable Recording and Mixing
LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so
they can be transferred to your favorite DAW for further mixing and editing.

5 Individual Headphone Monitor Mixes
Each of LiveTrak’s five monitor outputs provides a unique stereo mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

Features:

12 Input Channels; 8 Mono Combo XLR 1/4-inch TRS + 2 Stereo 1/4″ TRS or RCA
14-track Multi-track Recording, 12-track Playback
14-in/4-out USB Audio Interface
5 Stereo Headphone Outputs with Individual Mixes
48V Phantom Power (channels 1-4 and 5-8)
Hi-Z Inputs (channels 1 and 2)
26 dB Pad (channels 3-8)
Built-in Compression (Channels 1-8)
Individual Digital Level Meters -48 dB to -0 dB
Master Mute Button
Scene Saving Functionality
16 Delay and Reverb Effects (with adjustable parameters)
SD Card Input
Built-in metronome
Latency Adjustment for A-to-D Conversion

Specifications:

NUMBER OF INPUT AND OUTPUT CHANNELS
Inputs:	Mono (MIC/LINE): 8 Stereo (LINE): 2
Outputs:	MASTER OUT: 1 MONITOR OUT: 5
INPUTS
Mono (MIC/LINE):	Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 – +50 dB Input impedance XLR: 3 kΩ TRS: 10kΩ/1 MΩ (when Hi-Z ON) Maximum input level PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at dBFS) Phantom Power +48 V
Stereo (LINE):	Type: TS phone/RCA pin (unbalanced) jacks Maximum input level +10 dBu
OUTPUTS
MASTER OUT:	Type: XLR jacks (balanced) Maximum output level: +14.5 dBu Output impedance: 100 Ω
MONITOR OUT A (TRS):	Type: TRS phone jacks (balanced) Maximum output Level: +14.5 dBu Output impedance: 100 Ω
MONITOR OUT A-E (PHONES):	Type: Standard Stereo phone jacks Maximum output level: 42 mW + 42 mW at 60 Ω Output impedance: 100 Ω
BUSES
MASTER:	1
MONITOR:	5
SEND EFX:	1
CHANNEL STRIP
COMP:
LOW CUT:	75 Hz, 12 dB/OCT
EQ:	HIGH: 10 kHz, ± 15 dB, shelving MID: 100 Hz-8 kHz, ±15 dB, peaking LOW: 100 Hz, ± 15 dB, shelving
LEVEL METERS
Level segments:	12
SEND EFFECTS
Effects:	16 types: Hall 1 & 2 (reverb) Room 1 & 2(reverb) Plate (reverb) Church (reverb) DrumAmb (reverb) GateRev (reverb) Spring (reverb) Delay (delay) Analog (delay) P-P Dly (delay) Vocal 1-4 (delay + reverb)
RECORDER
Maximum simultaneous recording tracks:	14 at 44.1/48 kHz (12 channel + stereo mix) 12 at 96 kHz
Maximum simultaneous playback tracks:	12
Recording format:	WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media:	16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
AUDIO INTERFACE
44.1/48 kHz:	Recording: 14 channels Playback: 4 channels
Bit depth:	24-bit
Interface:	USB 2.0
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
Windows:	OS： Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit) CPU: Intel® Core i3 or faster* USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
Mac:	OS： Mac® OS X 10.10 / 10.11 / 10.12 CPU: Intel® Core i3 or faster USB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards.
iPhone/iPad:	OS： iOS 8 / 9 / 10 * Apple Lightning-to-USB Camera Adapter required.
CARD READER
Class:	Mass storage USB 2.0 High Speed
USB HOST
Class:	USB 2.0 High Speed
SAMPLING RATE
Sampling rate:	44.1/48/96 kHz
FREQUENCY CHARACTERISTICS
44.1 kHz:	-1.0 dB: 20 Hz – 20 kHz
96 kHz:	-3.0 dB: 20 Hz – 40 kHz
EQUIVALENT INPUT NOISE
Actual measurements:	-128 dB EIN (IHF-A) with +60 dB/150 Ω input
Display:	LCD with backlight (128×64 resolution)
Power supply:	ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption:	17W maximum
External dimensions:	445 mm (W) x 282 mm (D) x 70.5 mm (H) 17.5″ (W) x 11.1″ (D) x 2.78″ (H)
Weight (main unit only):	2.53 kg / 5.58 lbs
