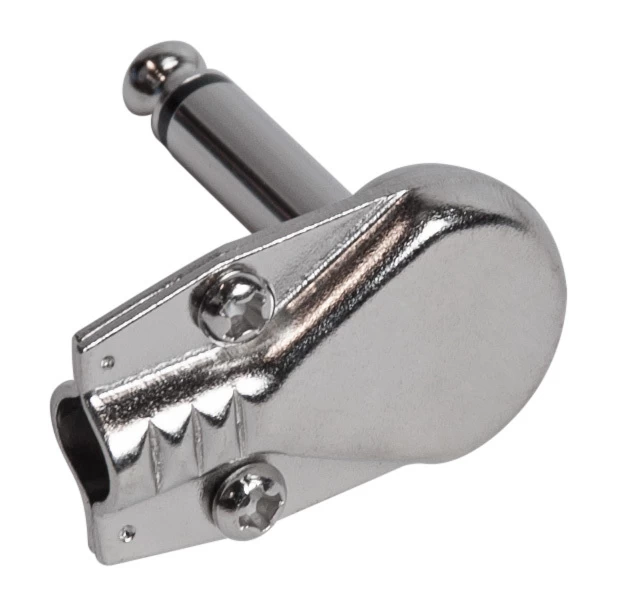

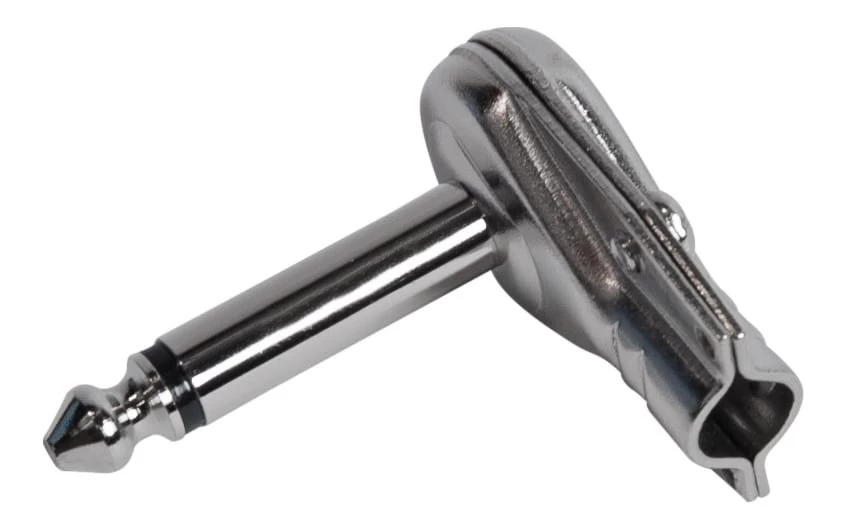

SWAMP Right Angled Guitar Jack Pancake Connector

SWAMP Flat-Style Generic 1/4″ TS audio connector
A pancake style 1/4″ TS connector used to transfer an unbalanced signal through an audio cable. The connector is angled at 90 degrees to enhance protection from knocks and maximise space on a pedal boards. Flat ‘pancake’ style shape is useful for patching and linking guitar effects pedals.

NOTE: Requires soldering to audio cable. Visit this link for a beginners guide to soldering audio cables – http://www.mediacollege.com/misc/solder/

Specifications:

• 1/4″ / 6.35mm TS (Tip, Sleeve) connector
• 8mm cable entry
• 47mm length (tip to back)
• 43mm length (back to cable entry)
• 13mm diameter (max)
