SWAMP BT-12 – 2-way Passive 12″ PA Speaker – 300W RMS – Type-B

SWAMP BT-12 – 12″ 300W RMS Passive Speaker
SWAMP has worked directly with the speaker manufacturer DE Acoustics to bring you the BT series. The BT-12 is a high performance two-way, full range passive loudspeaker. It utilises a 12″ bass woofer, high quality mylar HF driver and intelligent crossover, to deliver clear and powerful sound up to a 125dB max SPL. Comparable in build and sound quality to well known brands with models retailing above $400.

FOH or DJ Speaker

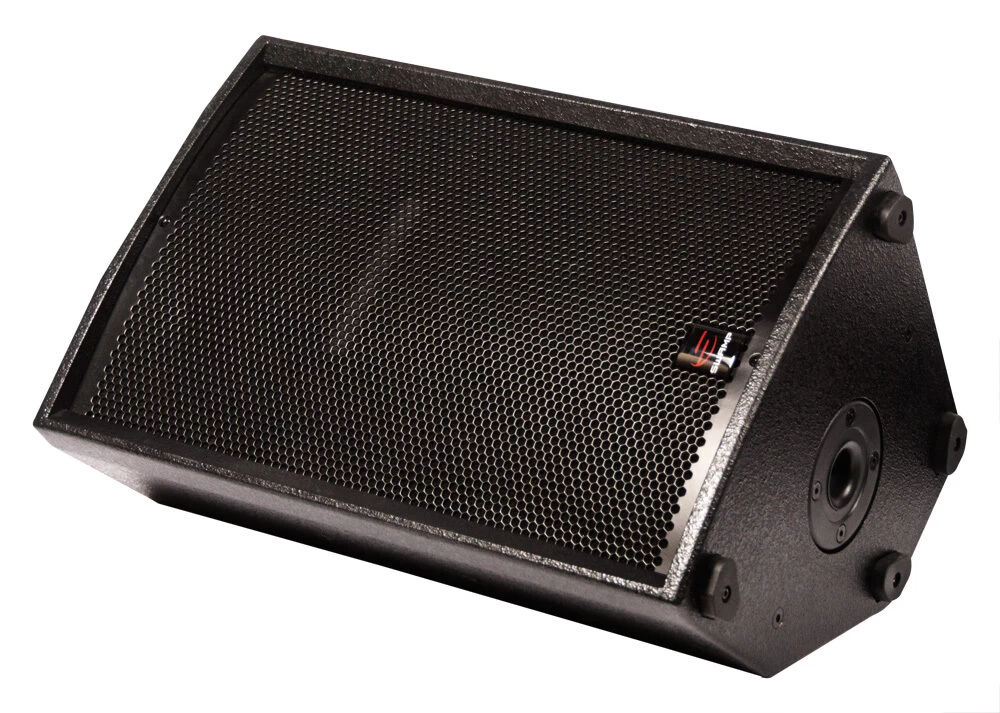

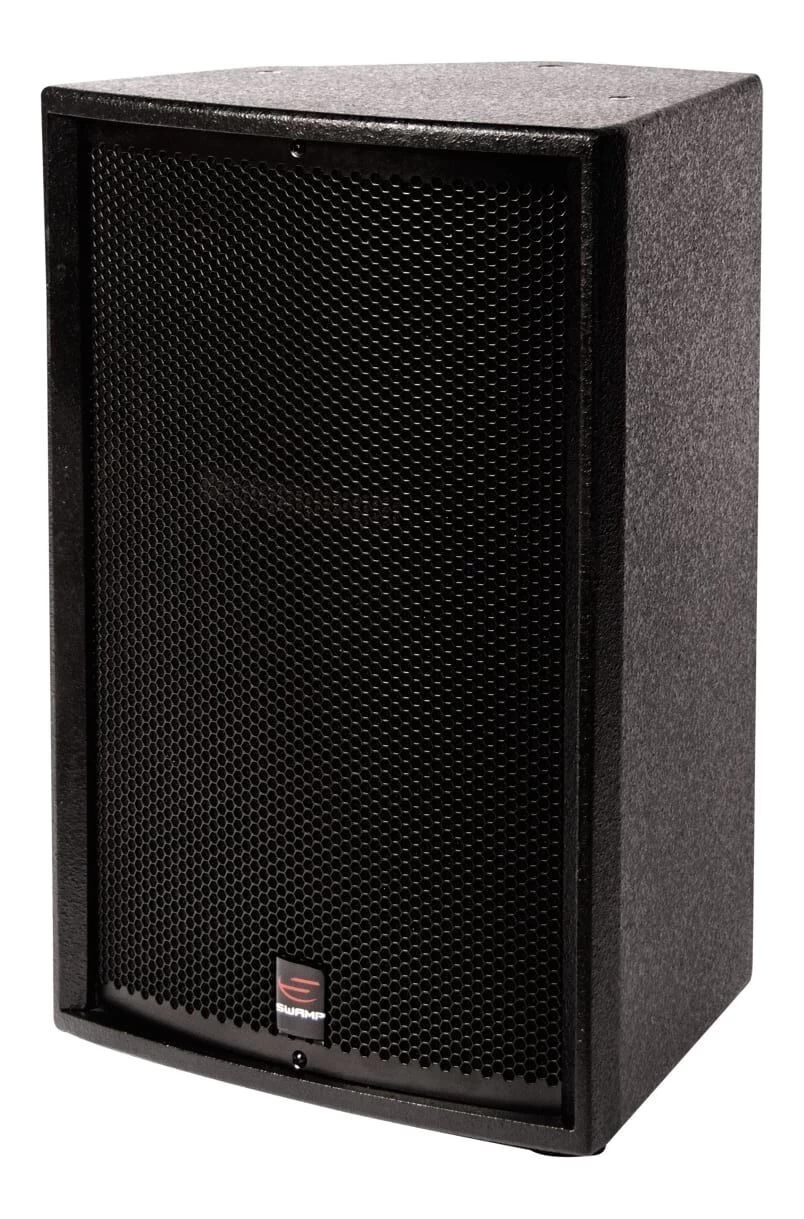

With foldback style flattened corner edges, this speaker can be used as a (passive) monitor / DJ speaker. The speaker stand hole also allows it to be mounted on any standard speaker stand to be used as a front of house PA speaker.

300W RMS / 600W Peak
Rated at an impressive 300W RMS (average power), a single BT-12 has the power to deliver clear, un-distorted sound for up to 120 people. Built to handle signals peaks of up to 600W.

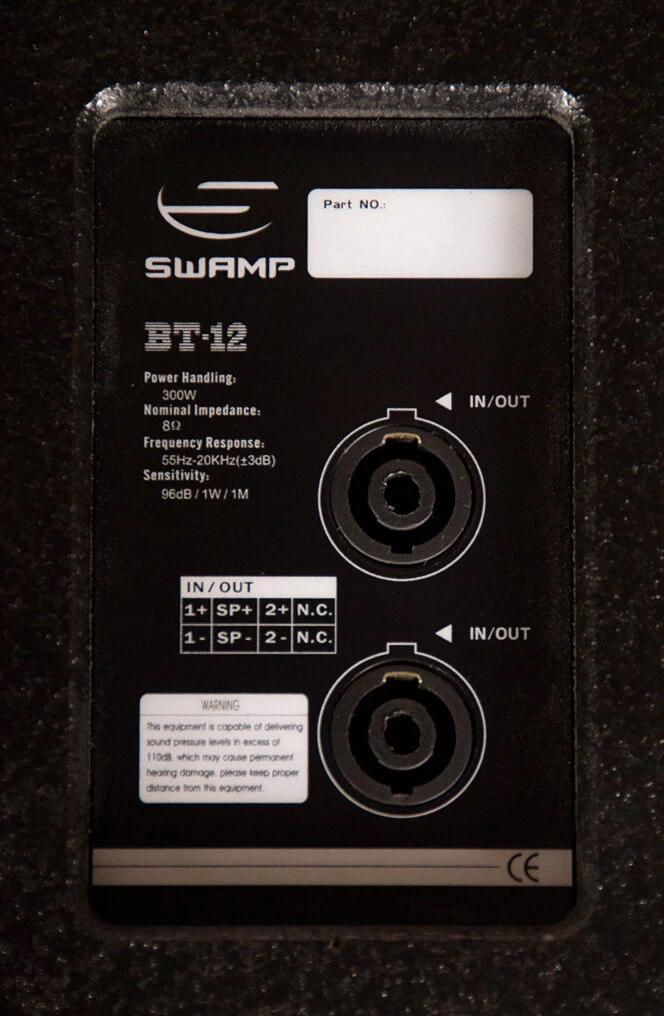

Two In/Out Sockets
Like many passive speakers, the BT-series features dual in/out speaker sockets, meaning it can be used in series with a second passive speaker, allowing you to power multiple speakers from a single amplifier channel. Perfect for stage monitors and spacial coverage in a large room.

Type A or B
SWAMP offers the BT-12 in 2 different configurations. Type A and Type B are a mirror image of each other. When laying flat on the floor in a monitor position, type A has the woofer on the left while type B has the woofer on the right (when facing the speakers). When using as a pair of monitors, this gives a more balanced spatial distribution of high and low frequencies, making for a better on-stage sound and a better audio experience for a centred listener.

Features:

• Wedge / Foldback Monitor Style Box
• 12″ Bass Woofer, 1.4″ HF Driver
• Speaker Stand Mounting Hole (standard 35mm)
• 300W RMS

Specifications:

• Frequency Response: 55Hz-19KHz (-3dB)
• Type: 12″ two way, passive, full range
• Drivers:
  – LF: 1×12″ bass driver, 120mm Magnet, 2.5″ voice coil overheat-proof
  – HF:1×1.4″ mylar diaphragm driver
• Sensitivity: 96dB/1W/1M
• Rated Impedance: 8Ω
• SPL: 119 dB continue, 125 dB peak
• Coverage: 90 x 50 Degree
• Construction:
  -15mm HDF (High-density fiberboard) cabinet; black paint; water proof
  -12 x M8 fitting point, 38mm standing hole
• Monitor / Wedge angel: 30 degrees
• Dimensions: 600mm x 380mm x 320mm
• Weight: 18Kg

• Buying Option: Type-B
