SWAMP 18″ 600W RMS / 1200W MAX – Passive 18 Inch Subwoofer

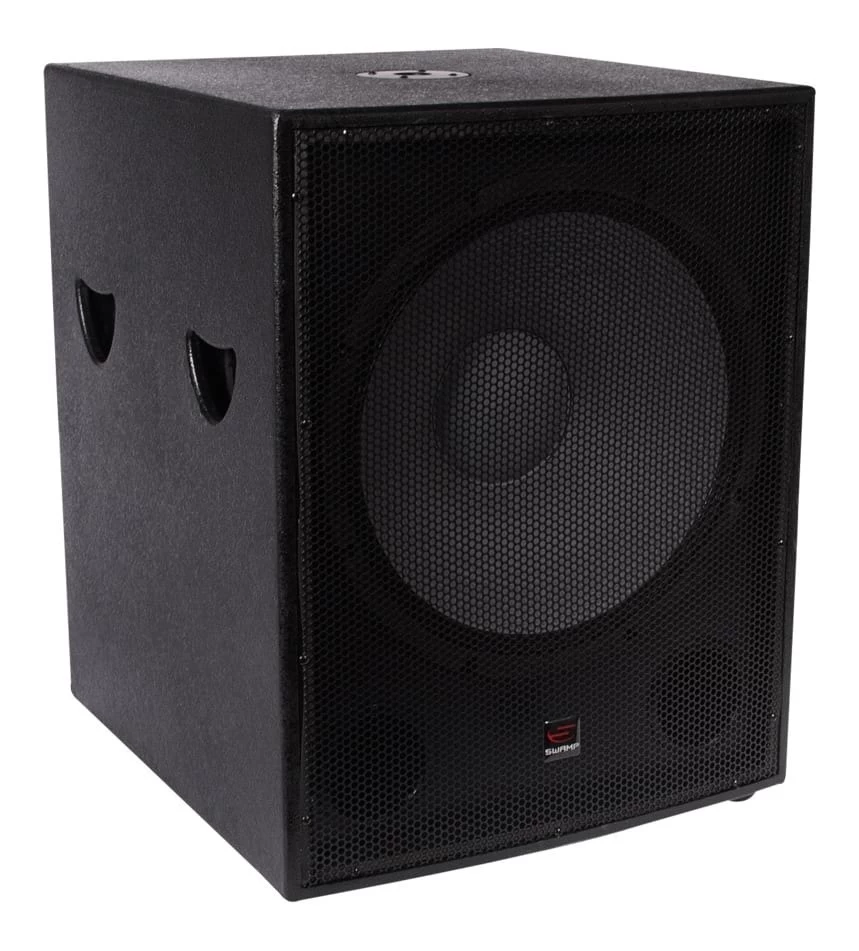

SWAMP CA-18SUB, 600W RMS – 18″ Passive Subwoofer
Designed as low-end reinforcement for any full range PA system catering to events such as DJ gigs, house parties and live band performances. This passive subwoofer with its 1200 Watts of power handling capability will fill out the bottom-end of any small to medium sized sound system, also works great paired with the SWAMP 10″ and 12″ PAJ series tops.

Top Speaker Stand Mounting Socket
The CA-18SUB features the standard 35mm hole on the top of the sub, for mounting any standard speaker and stand, and save valuable floor space.

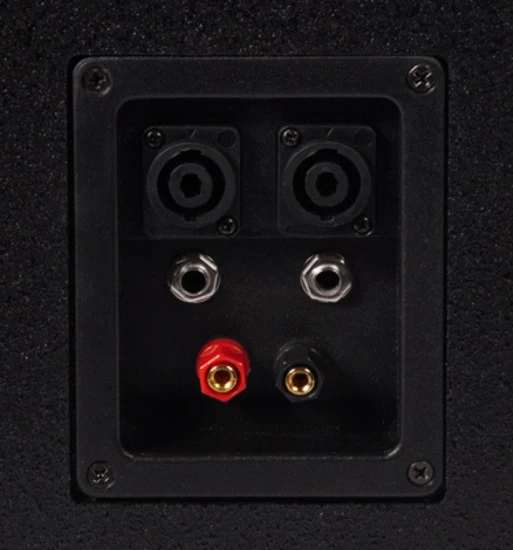

Power from a Power Amplifier / Audio Receiver
Being a ‘passive’ speaker, the CA-18SUB will require a ‘power amplifier’ to provide the audio signal and the power required to drive the subwoofer. Power amps are either sold as standalone units, or may be included as part of a mixing desks or audio receiver (home theatre). The CA-18SUB can be powered by any type of power amplifier, providing the power output of the amp does not exceed 700W (at 8 ohm). We recommend selecting an amplifier outputting between 500W and 700W (at 8 ohm). Feel free to contact us for assistance in selecting a suitable power amp.

Features:

• Powerful general subwoofer
• Top speaker stand mounting socket
• High density 18mm fibre board cabinet

Specifications:

• Impedance: 8 Ohms
• Max Power Rating: 1200W (1200 Watts)
• RMS Power Rating: 600W RMS
• Dimensions: (L x W x H) 555mm x 600mm x 698mm
• Weight: 38kgs
• SPL@ 1W/1M: 101 dB
• Max SPL: 130 dB
• 18″ driver: 125oz (3.5kg) magnet, 4″ Voice coil.
• Frequency range: 35Hz-250Hz
