PASGAO PV-60 Wireless Communication System – Earbuds And Microphone Included

PASGAO Wireless Communication System – Earbuds and Microphone Included

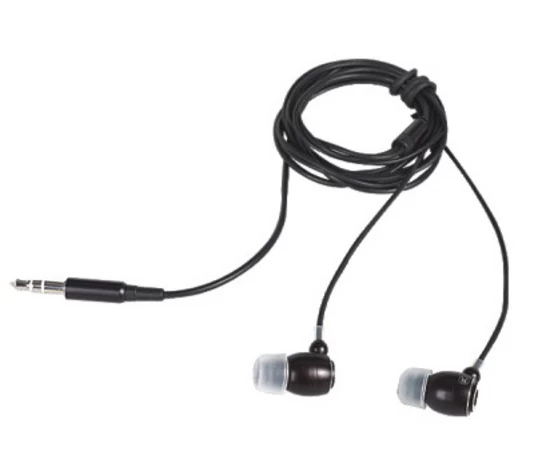

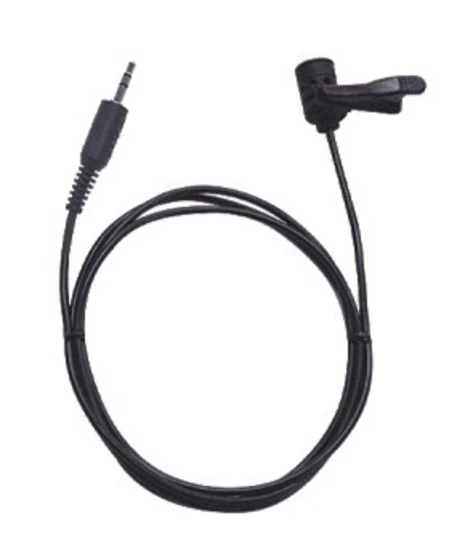

The PV-60 is a low cost, high performance wireless communication system including a battery powered transmitter, receiver, a lavaliere microphone and a set of high definition earphones. This system is ideal for any scenario where a compact, wireless communication or monitoring system is required. With 16 frequency channels to choose from, each user can operate on independent bands without interference from other systems if necessary. Intuitive operation and easy set up makes this unit a perfect choice for venues, event organizers, and audio hire companies.

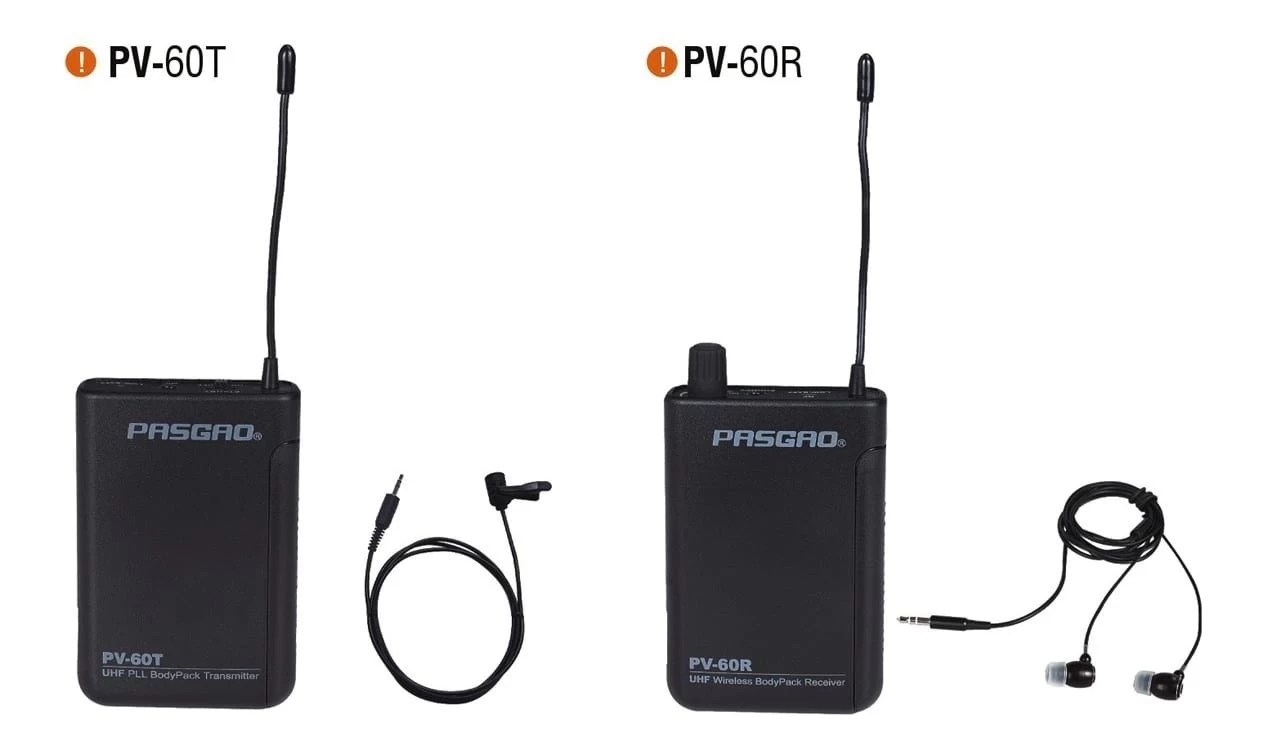

PV-60R Body Pack Receiver
The PV-60R is compact, lightweight, and inconspicuous receiver unit with a strong headphone level output.The unit includes a audio level control, a LED RF On/battery life indicator, line level 3.5mm TRS output socket and a 16 channel selector switch for choosing frequency bands. This body pack is ideal for stage productions and live bands, but also really any application where a portable receiver system is required. An unlimited number of receivers can be connected to a single transmitter. The broadcasting range of this device is 655-679MHZ, making it both legally and functionally suitable for most areas of Australia.

PV-60T Wireless Transmitter
The PV-60T transmits a Line Level audio signal across a choice of 16 UHF bands. The unit includes a audio level control, a LED RF On/battery life indicator, and 3.5mm TRS microphone input and a 16 channel selector switch for choosing frequency bands. The broadcasting range of this device is 655-679MHZ, making it both legally and functionally suitable for most areas of Australia.

About PASGAO
PASGAO is an experienced Chinese manufacturer of many types of wireless microphones and audio devices. Also an OEM manufacturer, PASGAO has partnered with many famous global microphone brands for their wireless mic ranges. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.

PV-60R Receiver Specifications:

• Frequency Range: 655-679MHz
• Audio output level control button
• Earphone Jack
• Battery low indicator light
  • Green on: power on
  • Red flash: battery low
• Antennas
• Battery cover
• 16 Selectable Channels

PV-60T Transmitter Specifications:

• Frequency Range: 655-679MHz
• Battery low indicator light
  • Quick Flash for power on
  • Long continued flash for low battery
• Microphone socket
• Power switch, middle position switch
  for latency
• Antennas
• Battery cover
• 16 Selectable Channels

Important Changes To Wireless System Requirements – Digital Dividend
The Australian government has recently re-purposed a range of the UHF frequency spectrum for telecommunications use. This means that the legal operating frequencies for personal broadcasting have changed.

As of 1st of January 2015, any broadcasting system operating in Australia, including wireless microphones and other wireless audio systems, must now operate between 520-694MHz. This is not only a legal requirement, but an operational requirement to prevent interference that can be picked up in commercial broadcasting frequency ranges.

The Pasgao range that SWAMP distributes in Australia generally will have a frequency range between 655-679MHz, though please check the specifications listed.

While 520-694MHz is the general frequency range for operation in Australia without needing approval, the available frequencies bands do vary by location. For more information or to find out how to check available frequencies near you, please read our helpful article about wireless devices in Australia at the following link: Using Wireless Equipment in Australia
