PASGAO 8-Channel Antenna Distribution System W/ 4 Channel Power Distribution

PASGAO 8-Channel Antenna Distribution System – For Wireless Mics and In-Ear systems

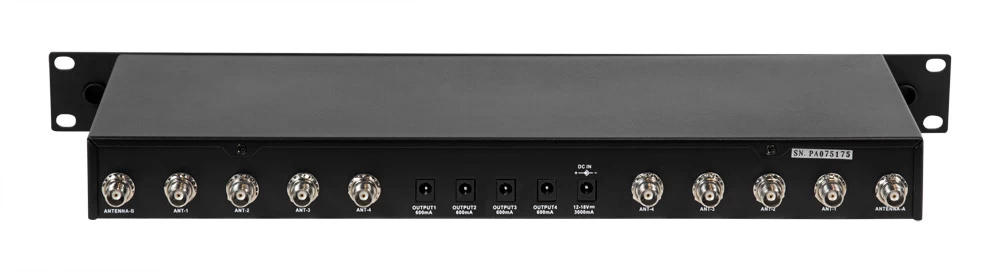

The PA-928U is a 19″ rack mountable antenna distributor that accommodates up to 8 channels of either wireless microphones or wireless in-ears. Also known as a combiner, the system connects up to 8 transmitter or receiver units using the 8 BNC to BNC connector cables supplied, providing an overall boost to each individual channel through the internal antenna amplification. Ideal for use at concerts, festivals, outdoor events or situations where multiple wireless microphones or monitoring systems are in use.

4 Channels of Power Distribution – Separate or Daisy Chain

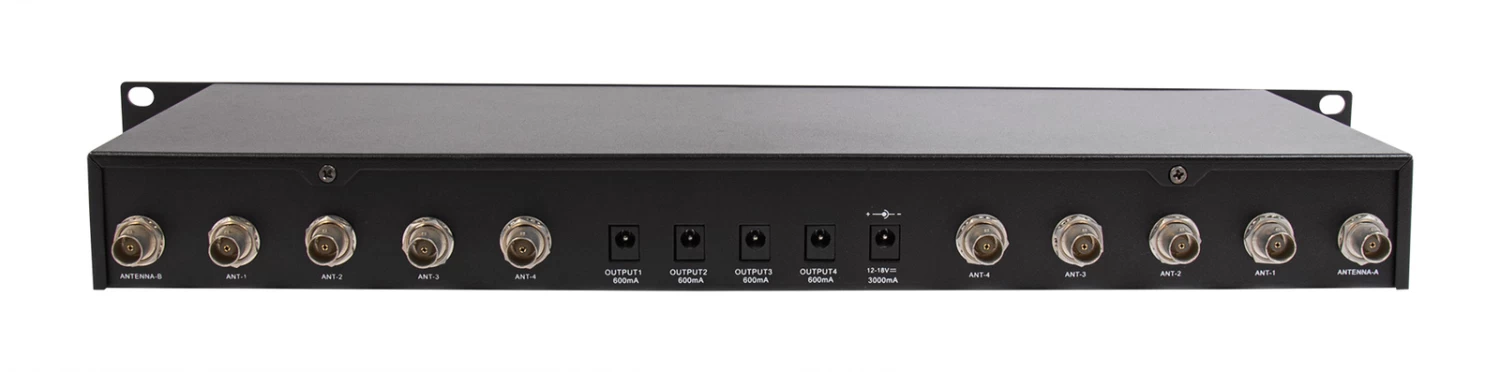

The PA-928U includes 4x power outputs to enable other wireless receivers in the same rack to be powered from the PA-928U. Each output has 600mA of current, enough for most receivers, and standard 2.1mm / 5.5mm DC power cables are included to patch between the PA-928U and the receivers. With such a configuration, it is possible to only need to plug in one power lead, to operate an entire wireless system rack.

Signal Amplification Included – Paddles Available
Each channel includes the same signal amplification featured in the individual PA-80U antenna amplifiers. Individual aerials (PA-2280), often referred to as paddles, can also be purchased to provide an even greater boost to the signal for use in large open spaces.

19 Inch Rack Mountable
The antenna distributor combiner comes with rack ears included and can be mounted in an audio 19″ rack case, taking up 1RU of space. A protective case will make this system much more suitable for taking on the road,allowing you to keep all cabling permanently connected for ultra fast set up and pack down and easy to transport safely.

About PASGAO
PASGAO is an experienced Chinese manufacture of many types of wireless microphones and audio devices. PASGAO an OEM manufacturer that has partnered with many famous global microphone brands for their wireless mic ranges. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.

Specifications:

• 8-channel antenna distribution
• Separate additional 4-channel power distribution
• 8 x BNC- BNC cables (50cm) (Included)
• Low noise circuit design
• Antenna Input impedance: 50Ω
• Antenna Output Impedance: 50Ω
• Connectors: BNC
• Gain: 10dB
• Bandwidth: 400MHz (500-900MHz)
• Power Requirements: DC12-18V 300mA
• Dimensions: 410 x 160 x 45 mm
• Weight: 190g
