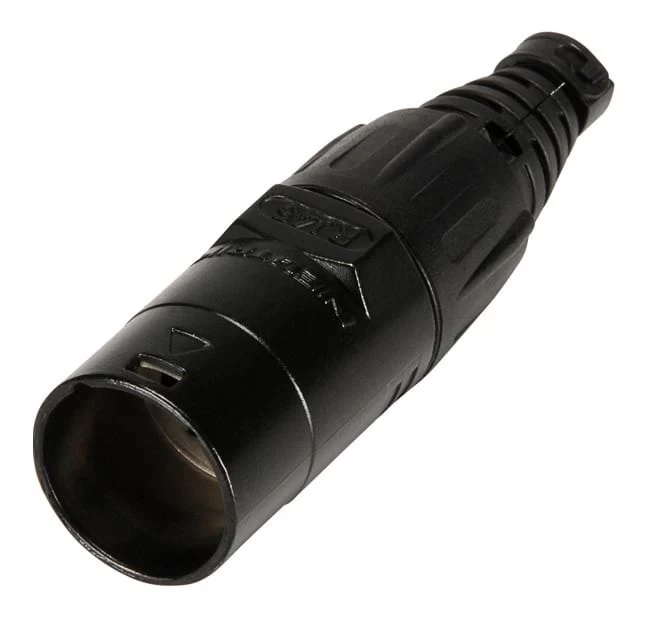

Neutrik NE8MX-B etherCON Cable Connector Carrier – Black

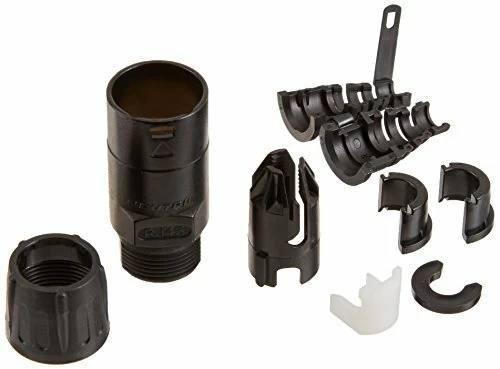

The etherCON NE8MX-B cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. Consists of a shell, fixing disk, chuck and boot, and is suitable for use with preassembled RJ45 plugs. The boot (same as XLR X-Series) is suitable for cable diameters from 4mm to 8 mm.

NOTE – Cable connector carrier does not include a RJ45 plug, or cable and does not intermate with CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features:

• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
• Rugged diecast shell and unique chuck type strain relief
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors

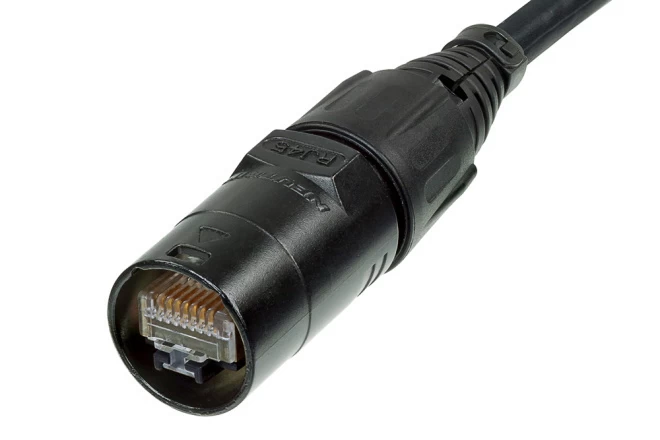

• Allows assembly of preassembled conventional RJ45 cables
• Accessories include color coded boots in 9 standard colors

etherCON® is a registered trademark of Neutrik (www.neutrik.com)

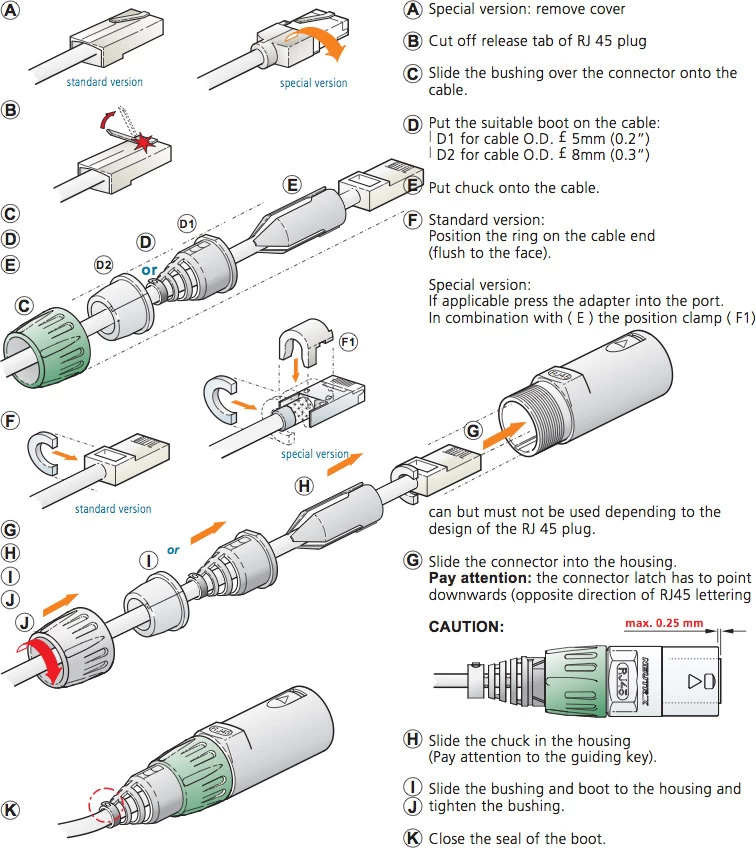

Assembly

Drawing
