Neutrik NC4FD-LX 4-Pin XLR Female Panel Mount Connector

Neutrik NC4FD-LX 4-Pin XLR Female DLX Series with Solder Terminals and Latch

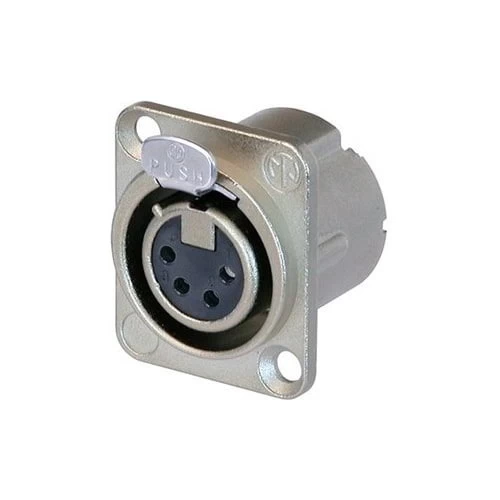

Neutrik NC4FD-LX 4-Pin XLR Female panel mount, with solder cups, nickel housing and silver contacts. The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Fetaures:

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area

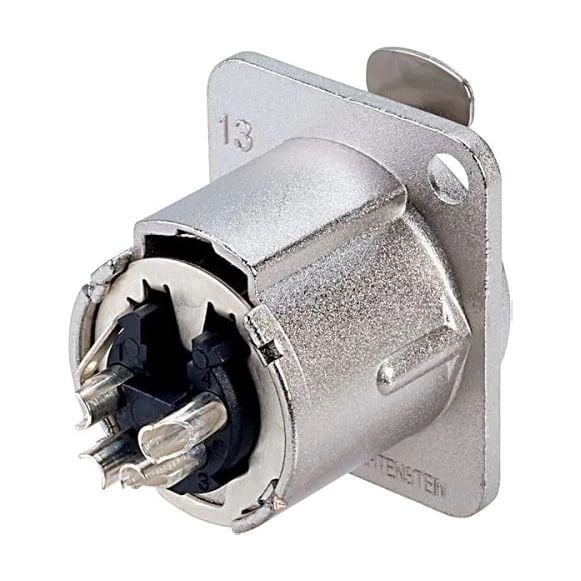

• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions

Specifications:

Connection Type	XLR
Gender	Female
Capacitance between contacts	≤ 7 pF
Contact resistance	≤ 5 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	10 A
Rated voltage	< 50 V
Lifetime	> 1000 mating cycles
Wiring	Solder contacts
Locking device	Latch lock
Chassis shape	D
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel
Standard compliance	IEC 61076-2-103
Protection class	IP 40
