Neutrik NC3MRX XLR(m) Right Angle Audio Connector

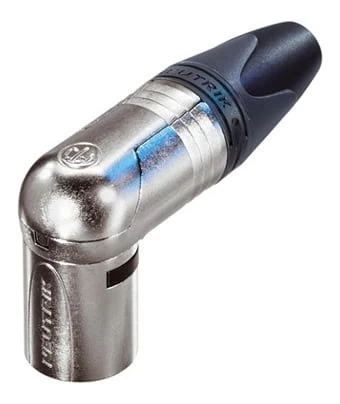

Neutrik NC3MRX Right Angle XLR Male Connector
Genuine NC3MRX Neutrik AG (Liechtenstein) XLR male right angle audio connector. The RX series is the successor to the RC series and is simply the right angle version of the XX range, featuring superior reliability, ease of assembly, with contact integrity and reduction of cable strain.

Added Features in the RX Series
The NC3MRX is 3-pole male XLR connector with nickel housing and silver contacts, and some added features. It has 7 different cable outlet positions and a slim line design, giving greater flexibility in its assembly and positioning in the application.

Neutrik Quality
Neutrik is the leading brand in audio connectors and offers quality of the highest standards. Neutrik connectors are used by professional audio technicians and musicians alike.

Features & Benefits

• Extra slim right angle connector

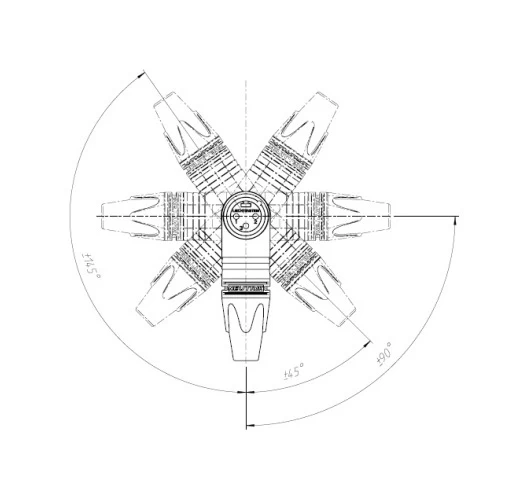

• 7 selectable cable outlet positions
• Male connector with improved locking recess without “window”, more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design – valuable and handy
• Branded with unique hologram- guarantees genuine and authentic Neutrik product

Includes

• 1x Genuine NC3MRX connector

Technical Info
FAQ
Assembly Instruction
Drawing (PDF)
