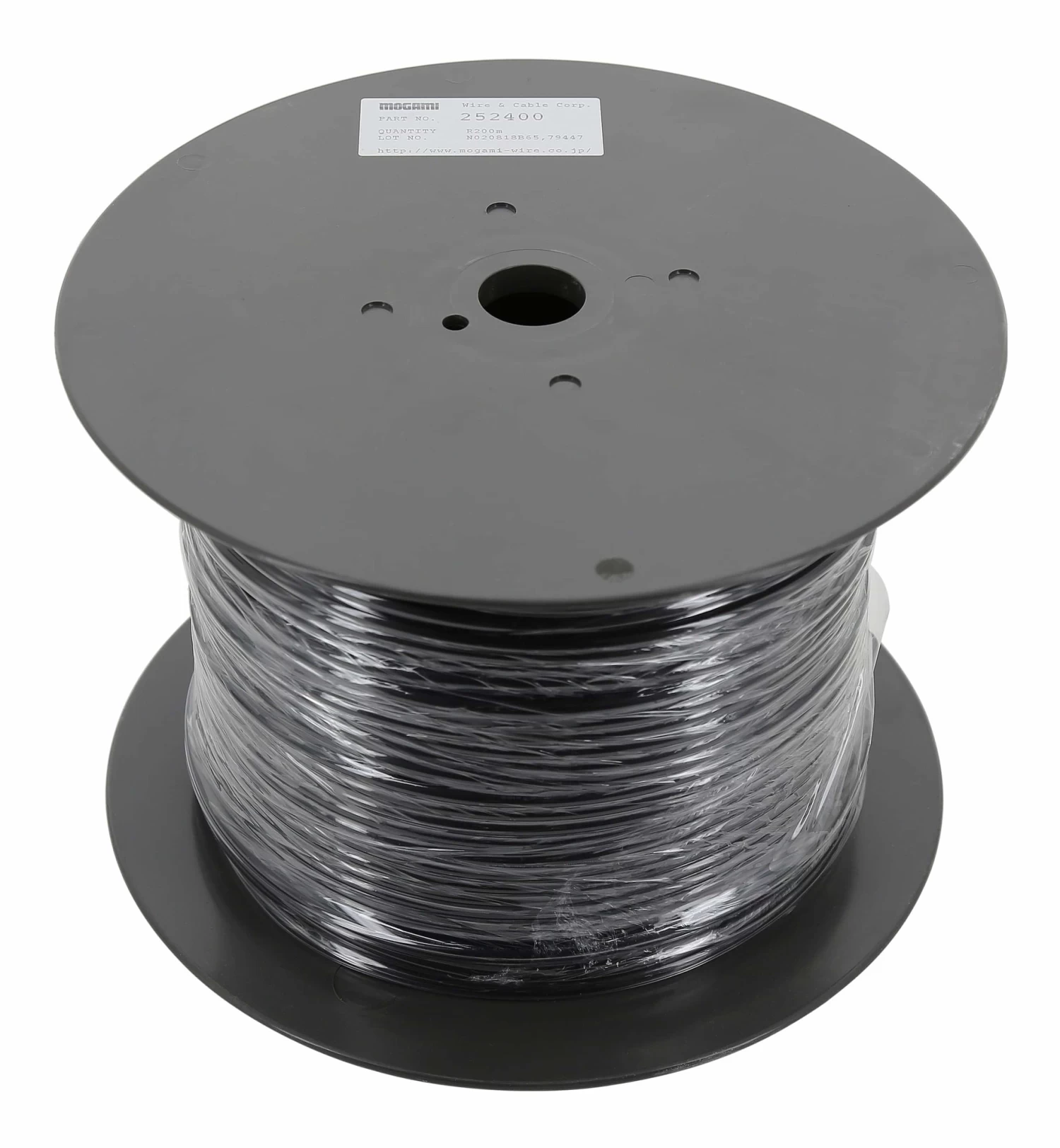

Mogami Star Quad Microphone Cable – Neglex W2534 – BLACK – 200m Roll

Mogami Neglex Star Quad Microphone Cable
Mogami Neglex quad cable is an excellent choice for recording environments suffering from grounding or wiring problems, such as home studios. Mogami 2534 is also very effective where RFI interference is a problem. Mogami 2534 provides an improvement in signal to noise of 10-20db over equivalent twisted pair cables. Double conductors quad cables are more effective in canceling noise that can get past even the best of shields and is critical in an environment of high RF and EM interference.

Features:

• Cross-Linked Polyethylene Insulation (prevents shrink-back)

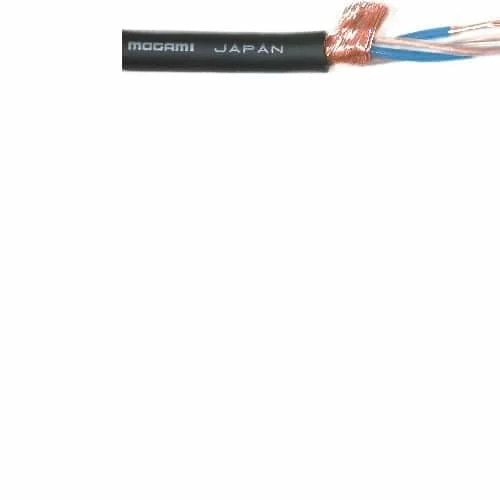

• Served (spiral) Bare Copper Shield
• Flexible in Extreme Cold Weather
• Reduced Handling Noise
• Rejects EMI and RFI

Specifications:

Configuration
Part No.		W2534	W2893
No. of Conductor		4(Quad)
Conductor	Details	20/0.12 OFC	30/0.08 OFC
	Size(mm²)	0.226mm² (#24 AWG)	0.15mm² (#26 AWG)
Insulation	Ov. Dia.(mm)	1.6Ø (0.063″)	1.0Ø (0.039″)
	Material	XLCPE (Cross-Linked Polyethylene)
	Colors	Blue / Clear (Quad)	Black / Red / Blue / Clear
Served Shield		Approx. 64/0.18A	Approx. 73/0.12A
Jacket	Ov. Dia.(mm)	6.0Ø (0.236″)	4.8Ø (0.189″)
	Material	Flexible PVC	Flexible PVC
	Colors	10 colours available	5 colours available
Roll Sizes		50m (164 Ft) 100m (328Ft) 200m (656Ft)	50m (164 Ft) 100m (328Ft) 200m (656Ft)
Weight per 200m Roll		11kg	7.5kg



Electrical and Mechanical Characteristics:

Part No.			W2534	W2893
DC Resistance at 20°C	Inner Cond.		0.083Ω/m(0.025Ω/Ft)	0.13Ω/m(0.040Ω/Ft)
	Shield		0.012Ω/m(0.0037Ω/Ft)	0.025Ω/m(0.0076Ω/Ft)
Capacitance at 1kHz, 20°C (Partial C. Value) See below figure*	K0		65pF/m(20pF/Ft)	74pF/m(23pF/Ft)
	K1		13pF/m(4pF/Ft)	11pF/m(3.4pF/Ft)
	K2		4pF/m(1.2pF/Ft)	3pF/m(0.9pF/Ft)
	Balanced Quad Connection	Cond.-Cond.	97pF/m(29.6pF/Ft)	131pF/m(40pF/Ft)
		Cond.-Shield.	110pF/m(33.6pF/Ft)	178pF/m(54pF/Ft)
Inductance between conductors at 1kHz. 20°C			0.4µH/m(0.12µH/Ft)	0.5µH/m(0.15µH/Ft)
Electrostatic Noise**			50mV Max.	50mV Max.
Electromagnetic Noise**			0.15mV Max.	0.15mV Max.
Microphonics at 50KΩ/ Load**			430m V Max.	30m V Max.
Voltage Breakdown			Must withstand at DC 500V/15sec.
Insulation Resistance			100000 M Ω/ × m Min. at DC 125V, 20°C
Flex Life**			11,000 cycles	26,000 cycles
Tensile Strength			686N	500N
Emigration			Non-emigrant to ABS	Non-emigrant to ABS
Applicable Temperature			-20°C‾ +70°C(-4°F‾ +158°F)
