LD Systems ICOA 12A 12″ Coaxial Powered Speaker

LD Systems ICOA 12A 12″ Coaxial Powered Speaker
From the new ICOA range of speakers from LD Systems, this 12″ powered speaker delivers incredible performance with clarity, flexibility and power. Featuring a coaxial design, rotating optimised horn, 4 DSP presets, 3 band EQ, 2 mic/line inputs at 126 spl.

ICOA Series

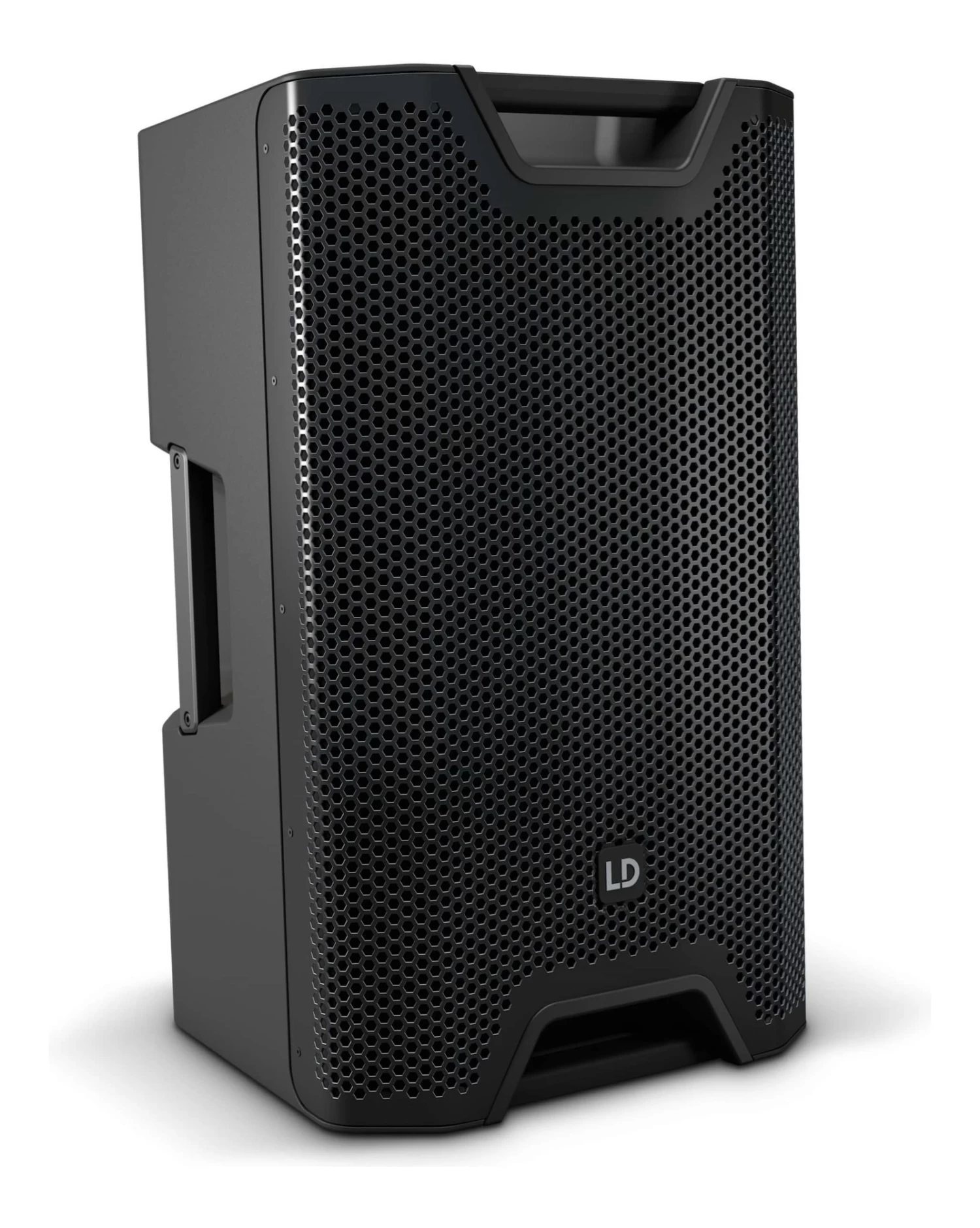

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12″ loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12A the ideal choice for musicians, bands, entertainers and dance schools. Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. The efficient Class-D power amplifier delivers 126dB max. SPL and 1200W peak performance.

Full Featured Design

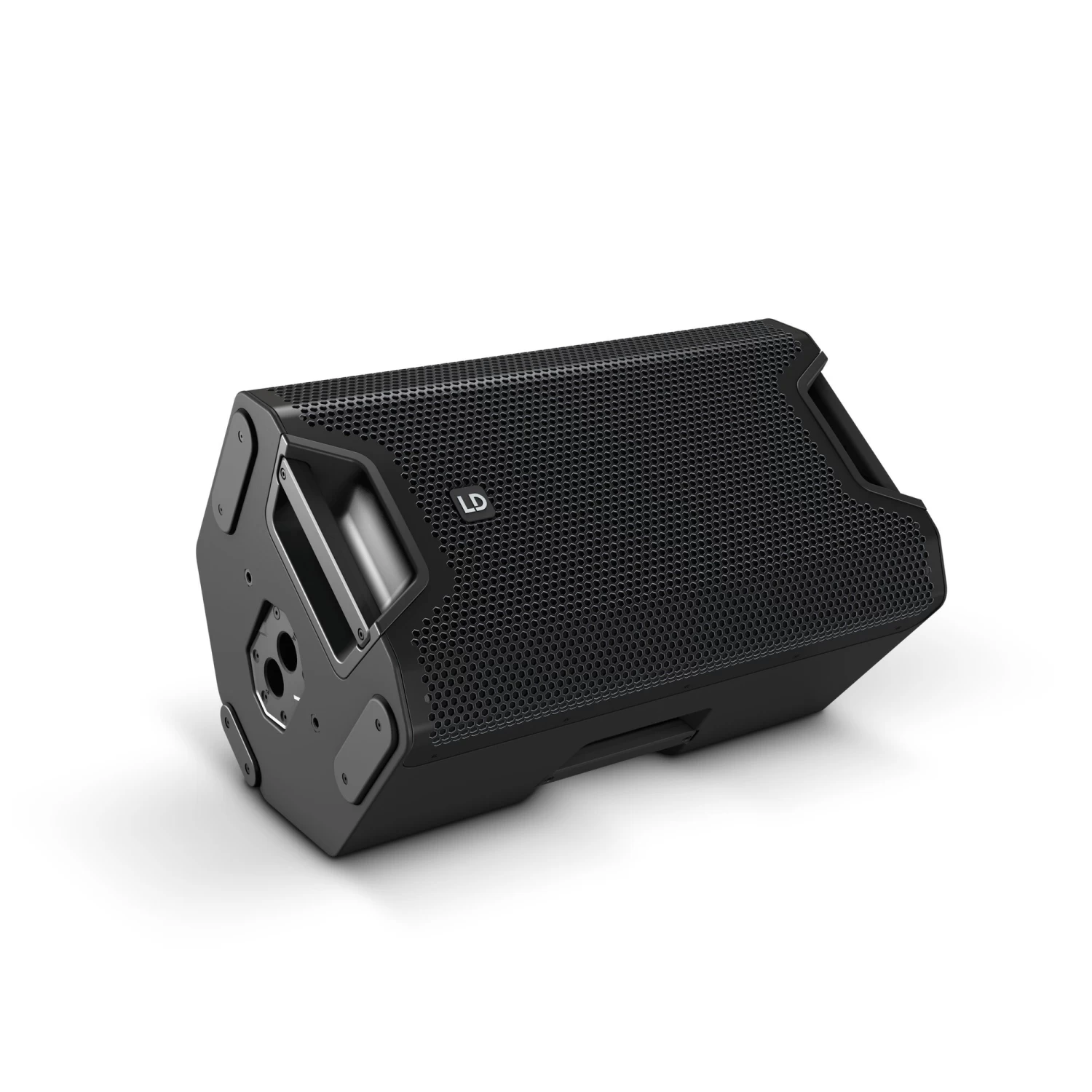

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect high performance under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Features:

• A genuine all-rounder for full-range, satellite and monitor applications
• 126dB max. SPL and 300W RMS performance
• Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn
• Horn-loaded woofer
• DynX DSP with 4 presets, 3-band EQ and delay function

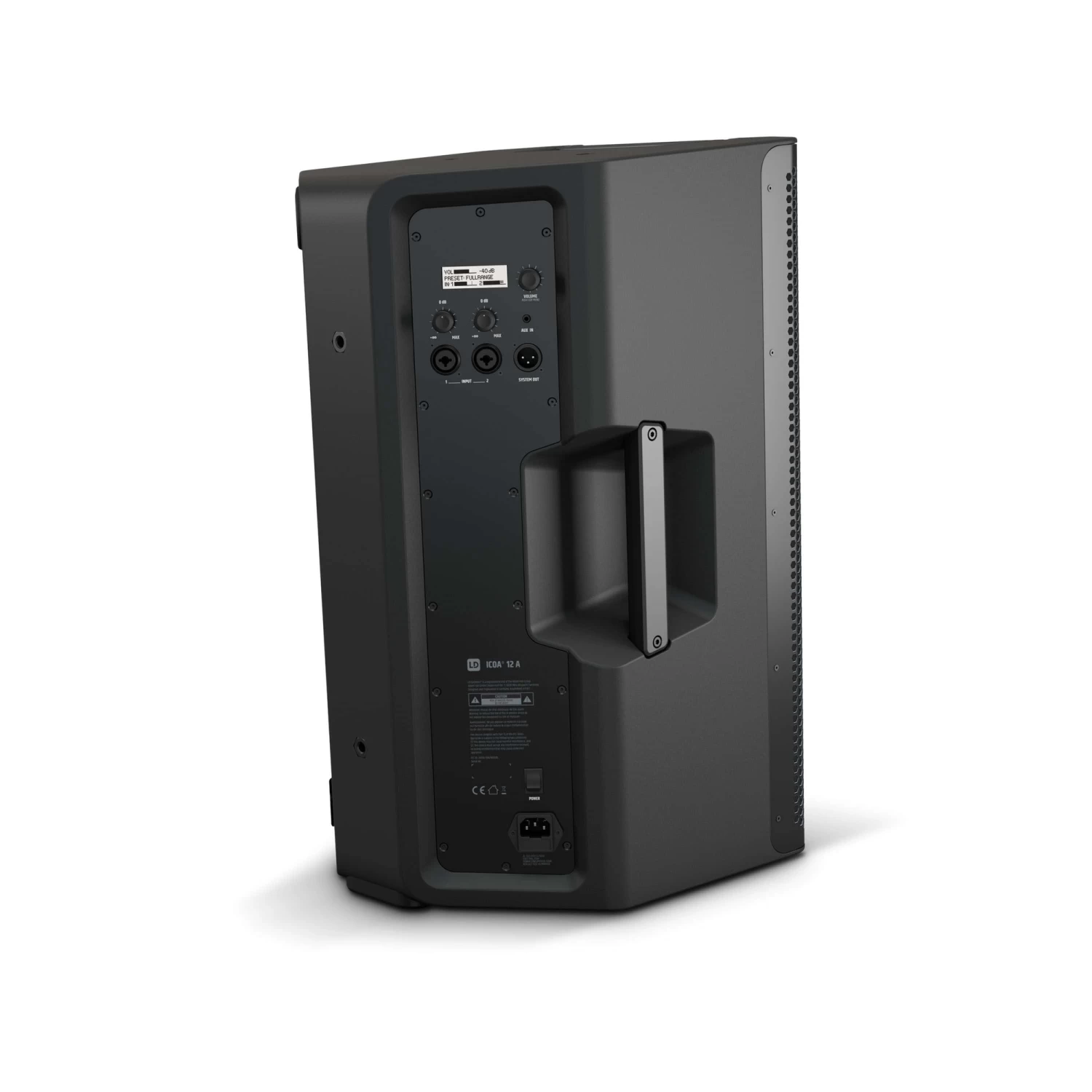

• 2 line/mic input channels with individual gain controllers plus mono mix output

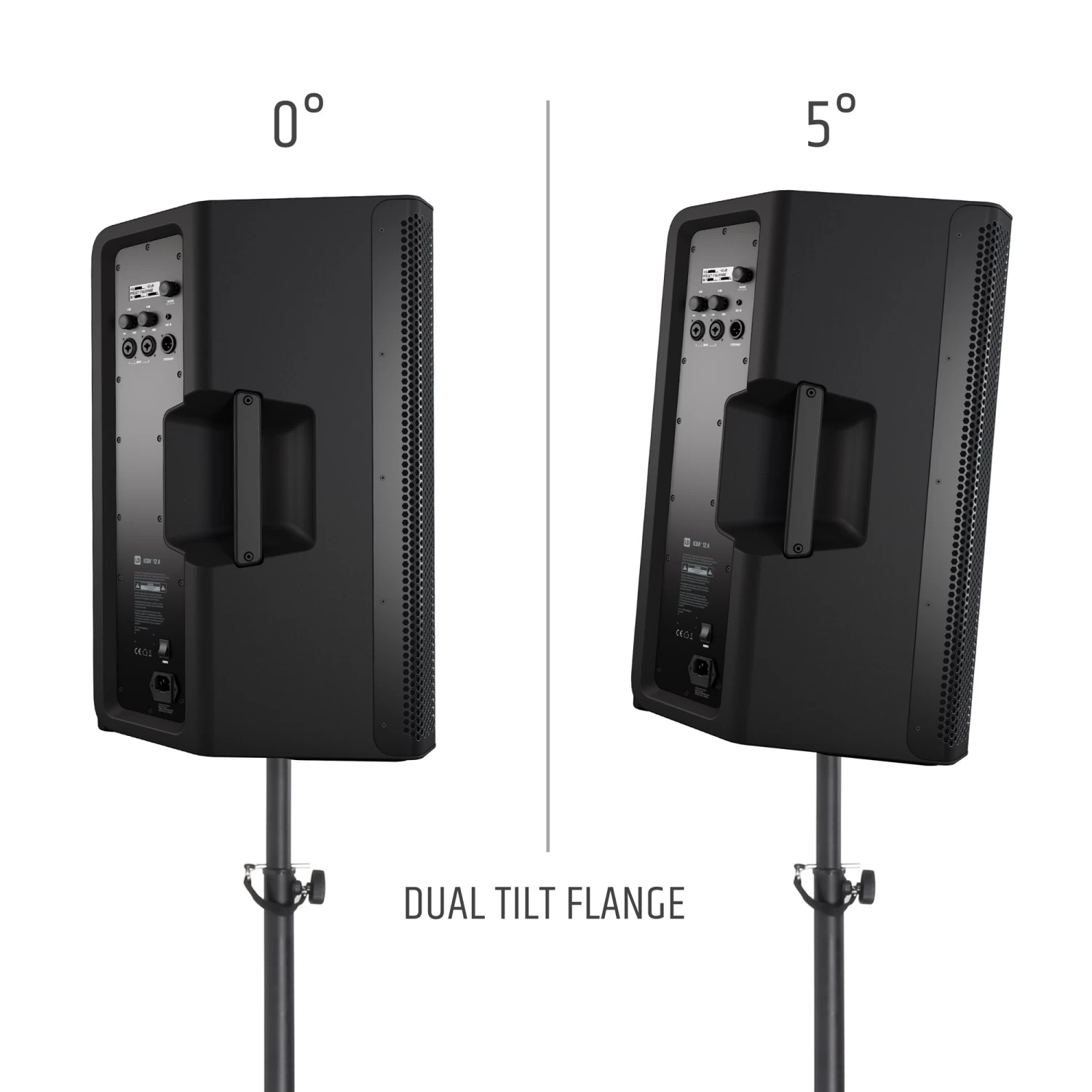

• 36mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

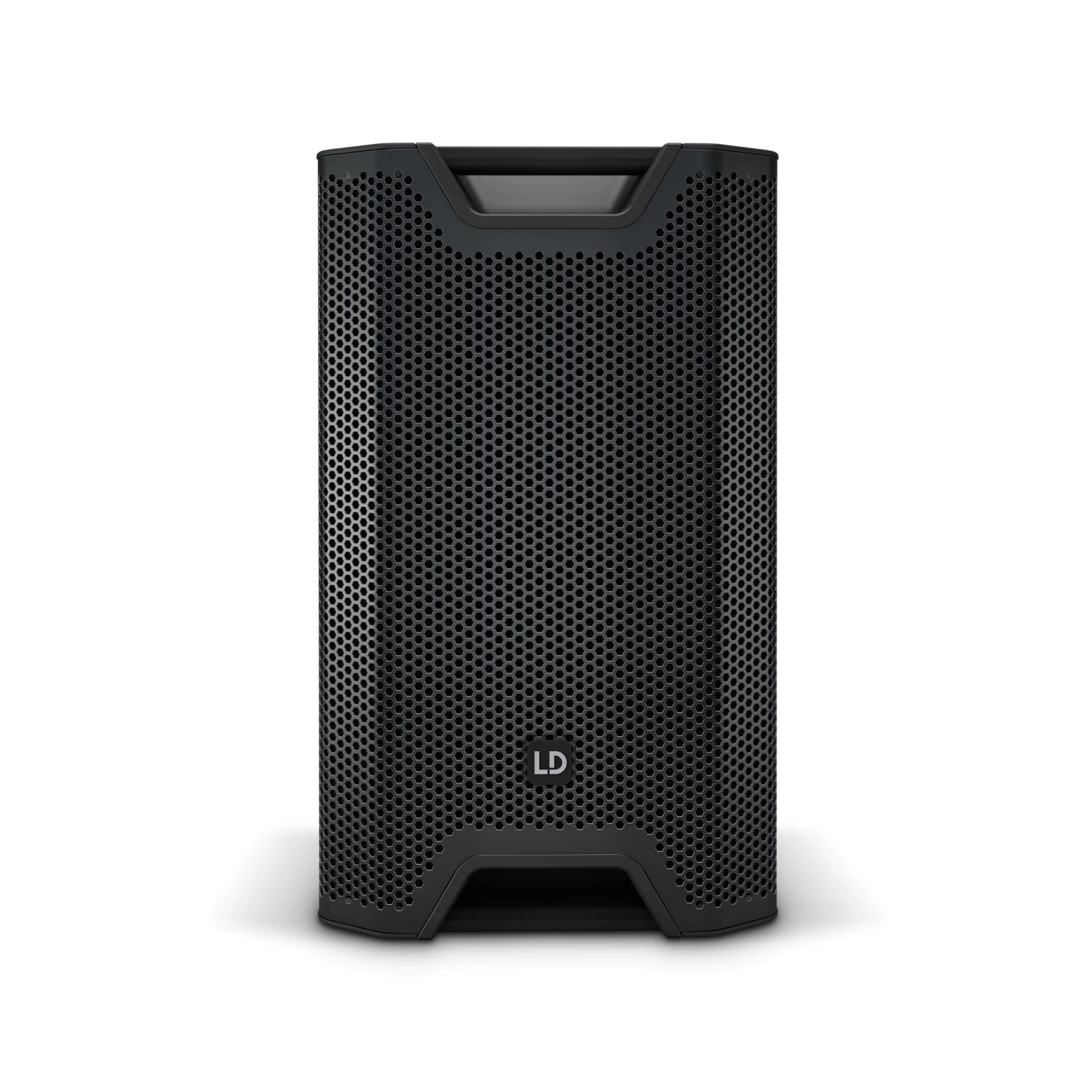

• Shock-resistant front grille for optimal protection of the speaker
• 4 aluminium grips with ergonomic, rubber surface
• Extensive, optionally available accessories for installation and transport

Specifications:

Product type	PA loudspeaker
Type	Powered
Low/mid driver dimensions	12″
Woofer size	304.8mm
Woofer magnet	Ferrite
Woofer brand	Custom-made
Horn	BEM optimized CD Horn
HF driver dimensions	1″
HF Driver Size	25.4mm
HF driver magnet	Ferrite
HF driver brand	Custom-made
HF driver voice coil	1″
HF Driver Voice Coil	25.4mm
Amplifier	Class D
Dispersion (H x V)	90° x 50
RMS	300W
Peak power	1200W
Frequency response	50 – 20000Hz
Crossover frequency kHz	2kHz
Max. SPL (peak)	126dB
Protection circuits	Multiband limiter , over voltage , over-current , thermal overload
Controls	2 x gain , On / off switch , Rotary/push encoder
Indicators	LC display
Mic/ line inputs	2
Mic-/ Line Input Connectors	6.3mm jack Combination sockets (symmetrical) , XLR
Line inputs	1
Line input connectors	3.5mm TRS
Line outputs	1
Line output connectors	XLR
Operating voltage	SMPS
Power consumption	150W
Ambient temperature ( in operation )	0 – 40°C
Operating voltage	100V – 240V AC / 50 – 60Hz
Relative Humidity	< 80%, not condensing
Fuse	T4AL 250V
Cabinet material	Polypropylene
Cabinet construction	Bass Reflex

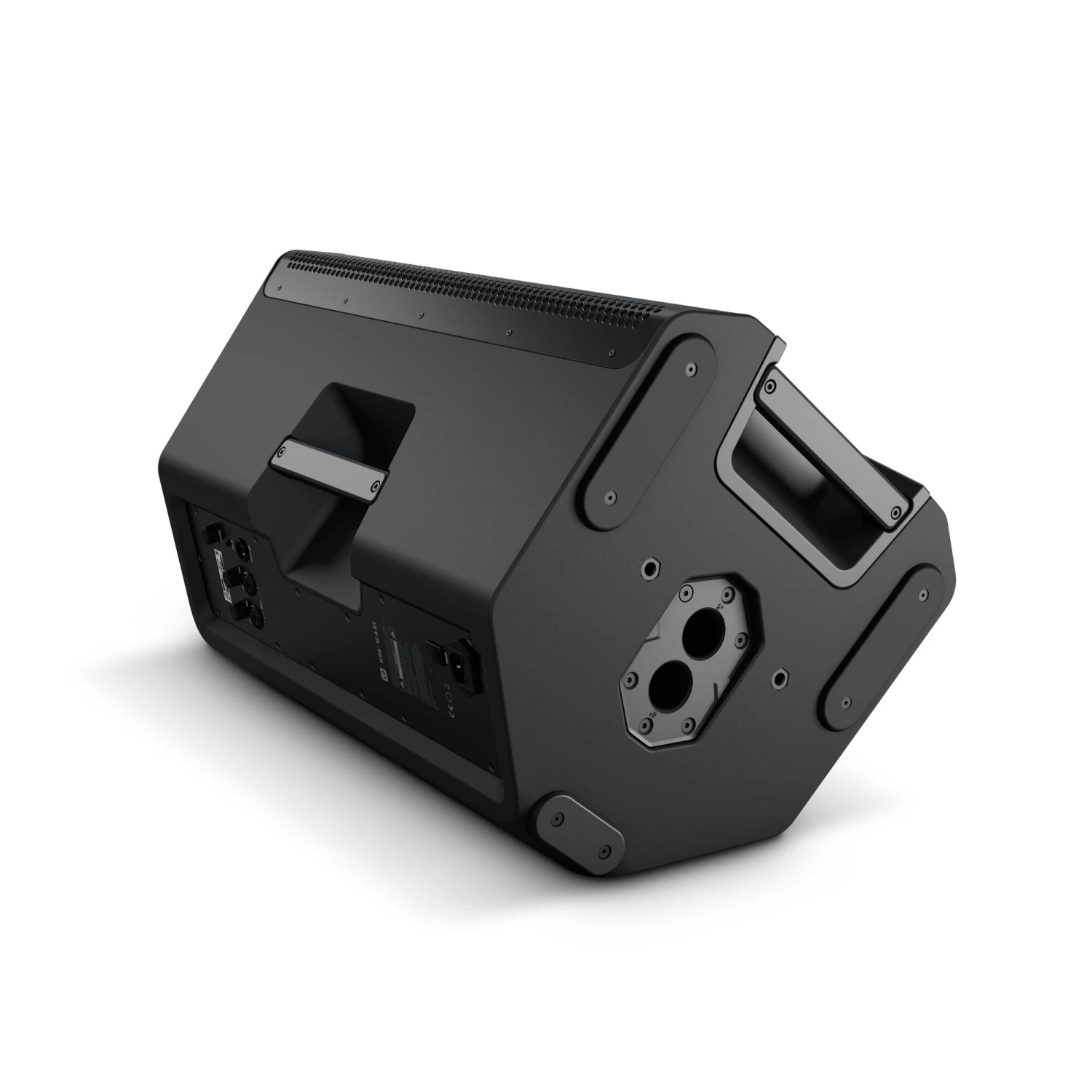

Mounting	36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle	55°
Width	375mm
Height	635mm
Depth	396mm
Weight	19.95kg
Accessories (included)	Power cord
