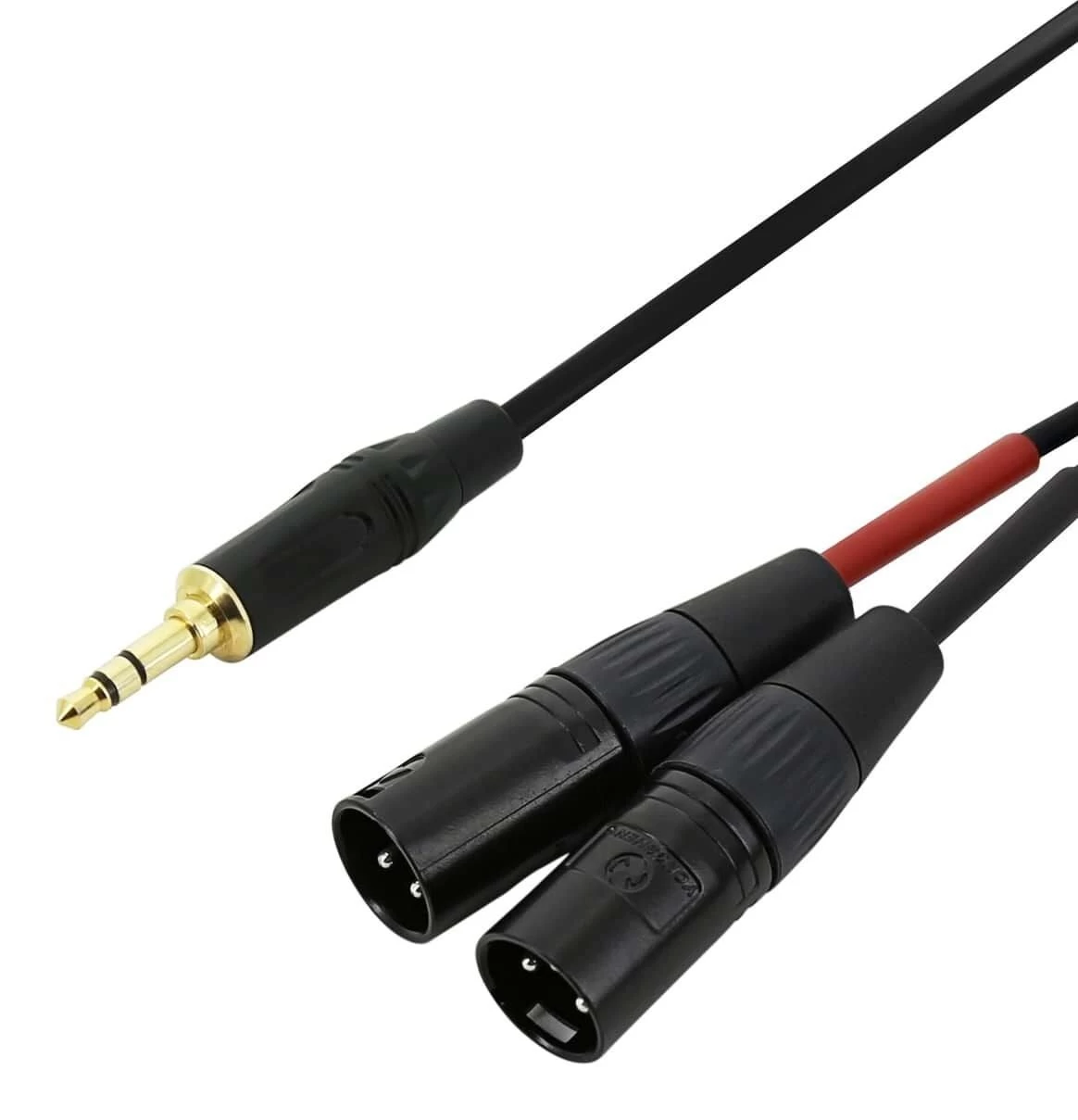

Dual XLR(m) To 3.5mm TRS – Stereo Signal Headphone Splitter – 2m

Stereo Signal Headphone Splitter – 3.5mm Stereo to Dual XLR(m)
Splits a 1/8″ TRS stereo (left, right) signal into two individual XLR(m) channels. Ideal for connecting any smartphone, laptop or device with a 3.5mm stereo output into two channels on a mixing desk or amplifier. By panning each channel Left or Right on a mixer, you can replicate the “true stereo” sound from the headphone output.

Note. A headphone signal is a “loaded” signal, designed to push the tiny speaker cone inside headphones. If connecting into a low-Z XLR mic input with a preamp (i.e. not a line level input), note that the signal may be “hot” and little or no gain may be required, even using a pad may be necessary. Setting your smartphone or laptop volume below 85% is a good way to minimise any possible input overload and signal distortion.

Quality Cable and Connectors

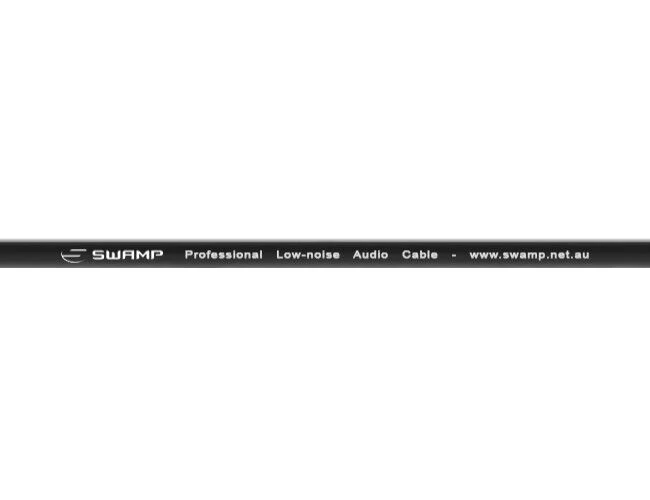

Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.

Specifications:

• Cable Colour: Black
• Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
• Conductor Gauge: 23 AWG / 0.23mm2
• Outer Diameter: 4.4mm
• Connectors: 1/8″ TRS (male) to 2x XLR (male) – (SWAMP TP180, Yongsheng YS137N-B)

Wiring:

1/8” (Stereo / TRS)	XLR (red)	XLR (black)
Tip	Pin 2
Ring		Pin 2
Pin 3	Pin 3 + Pin1	Pin 3 + Pin1

• Length: 2m
