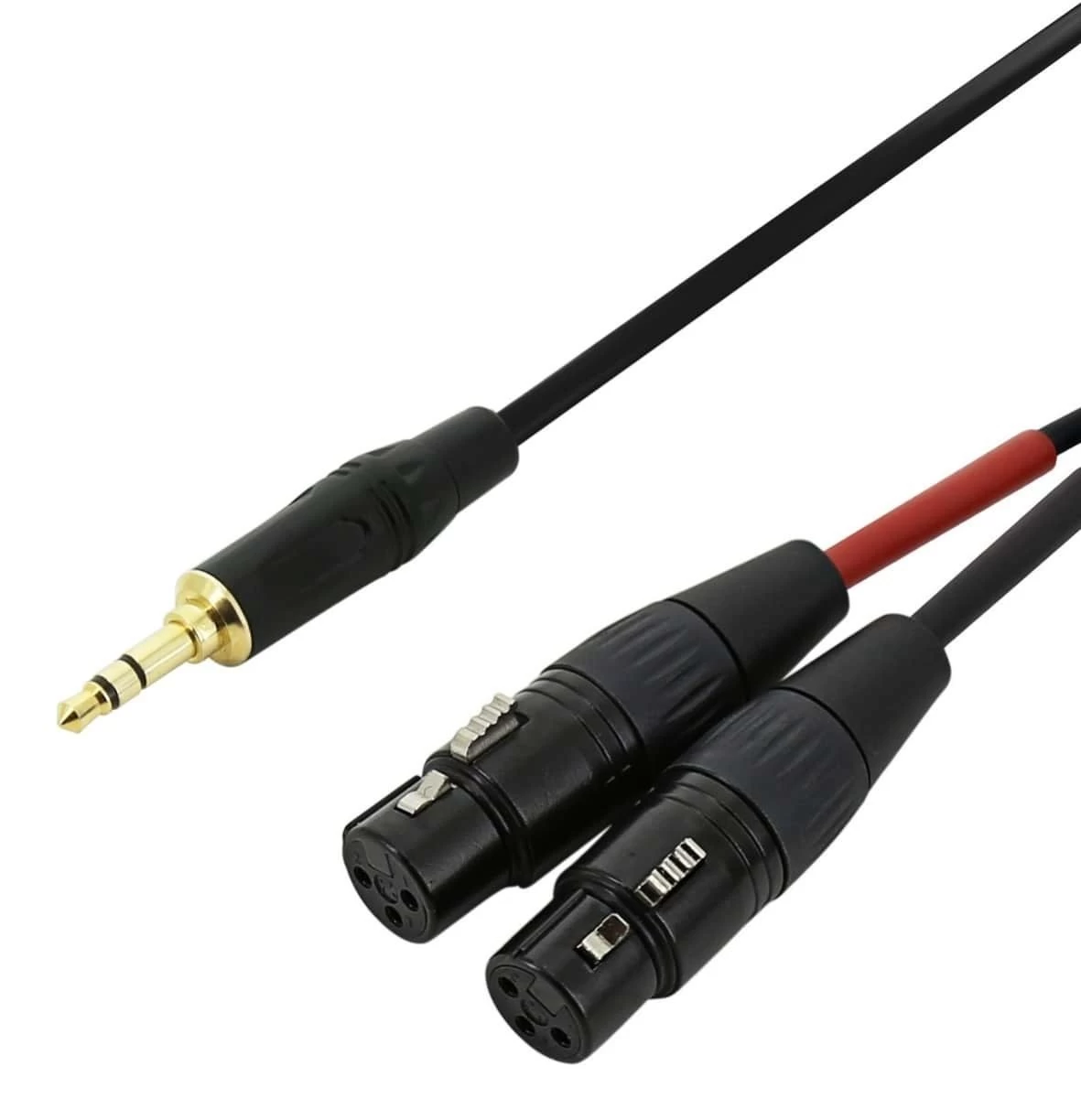

Dual XLR(f) To 3.5mm TRS – Stereo XLR Signal Combiner – 30cm

Dual XLR(f) to 3.5mm TRS – Stereo XLR Signal Combiner – 30cm
This cable is designed to combine a stereo (dual) XLR signal from a mixing desk, into a single TRS connector, ready to be inserted into a stereo 1/8″ 3.5mm input, such as the input of a laptop, smartphone, camera or recording device.

Need Extra Length?
Extend with a headphone extension cable to give the desired length.

Quality Cable and Connectors

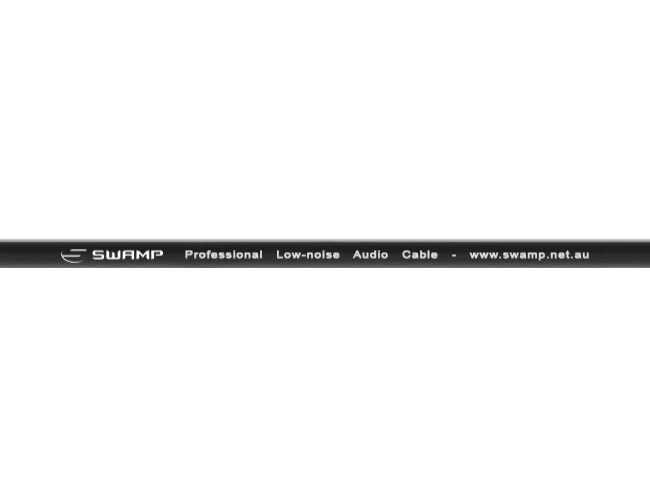

Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.

Specifications:

• Cable Colour: Black
• Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
• Conductor Gauge: 23 AWG / 0.23mm2
• Outer Diameter: 4.4mm
• Connectors: 1/8″ TRS (male) to 2x XLR (female) – (SWAMP TP180, Yongsheng YS136N-B)
• Length: 30cm

Wiring:

1/8” (Stereo / TRS)	XLR (red)	XLR (black)
Tip	Pin 2
Ring		Pin 2
Pin 3	Pin 3 + Pin1	Pin 3 + Pin1
