COMICA BoomX-U QUA Four-Channel Multi-Function Mini UHF Wireless Microphone

COMICA BoomX-U QUA Four-Channel Multi-Function Mini UHF Wireless Microphone
The COMICA BoomX-U QUA is a professional broadcast quality multi-functional mini UHF wireless microphone system, featuring four transmitters and one receiver, supporting 24 channels, at 120m transmission distance. Long battery life, auto scanning, LCD. Widely compatible with cameras, camcorders, recorders, mobile devices and PC / Tablet devices.

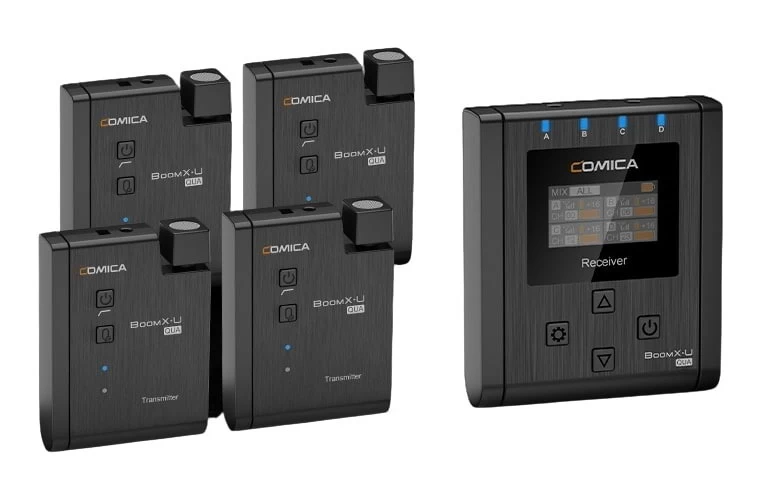

Professional System
The BoomX-U QUA consists of four TX units and a single four-channel capable RX unit. BoomX-U QUA works on UHF frequencies. You can choose from 24 Selectable UHF Channel. Operating distance is 120m / 394′ and the battery life is 6.5 hours. BoomX-U QUA allows users to mix up to four audio tracks or use individual outputs. Support 1-4 people recording at the same time. Every transmitter can select 24 channels, flexible channel matching. When other channels are disturbed in the same space or near distance, you can quickly switch the channel to prevent interference.

Mixing / Individual Output
Two different output modes: All – 4 audio tracks mixing out, and None – 4 audio tracks individual output. A convenience for post-production to meet the needs of different scenarios

Multiple Features
Excellent anti-interference ability with the 180° foldable antenna and up to 120 metres long transmission distance, making the shooting more stable. There are 24 Selectable UHF Channels, supporting 1-4 people recording at the same time. Every transmitter can select 24 channels, flexible channel matching. When other channels are disturbed in the same space or near distance, you can quickly switch the channel to prevent interference. A well designed LCD screen monitors the power of the microphone in real time, as well as monitor the working status of the microphones to ensure stable recordings. The transmitters and receiver are designed with a multi-functional belt clip design for ease of use.

Package Includes:
 – 4x Transmitter(TX)
 – 4x Lavaliers
 – 1x Receiver (RX)
 – 1x 3.5mm Mic Audio Input Cable
 – 4x Wind Muff
 – 1x 3.5mm TRS-XLR Audio Cable
 – 1x 3.5mm TRS-TRS Audio Cable
 – 1x 3 in 1 Charging Cable

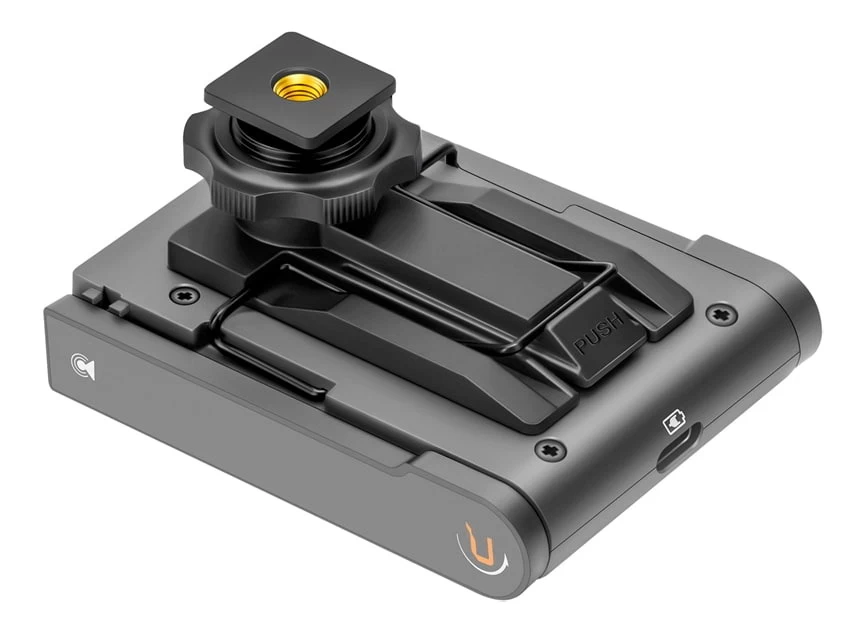

 – 1x Cold-shoe Quick Release Plate
 – 1x Carry Case
 – 1x User Manual
 – 1x Warranty Card

Features:

• 4-group UHF Wireless Microphone, Broadcast Level
• 24 Channels, Support Multi-receiver Monitoring & Shooting
• 180°Foldable Antenna, 120m Super-long Transmission Distance
• Support 4 Audio Tracks Mixing and Individual Output
• Support Charging While in Use, Battery Life Up to 6.5 Hours
• Internal and External Two Input Modes
• Support Auto-scanning/Manual Channel-setting
• LCF, 16-level Adjusted Gain Control, Optional Language, Muting Functions
• LCD Screen for Intuitive Power and Audio Dynamic Monitor
• Special Anti-loose Design for External Lavalier Mic

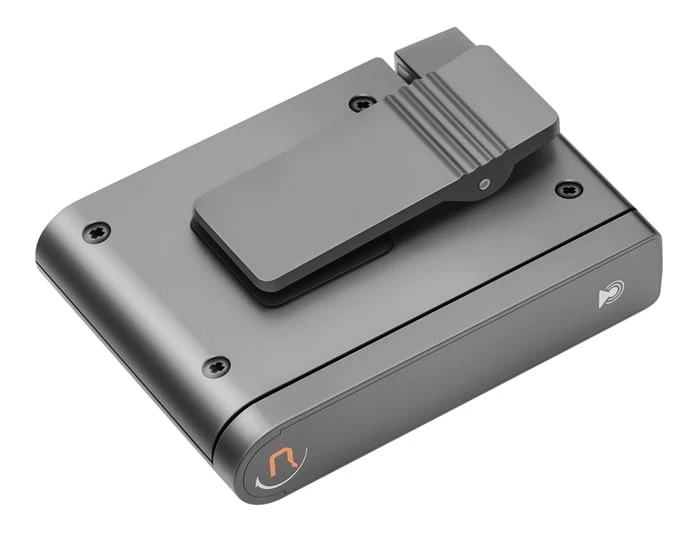

• Designed with Multi-functional Belt Clip and Compact

Specifications:

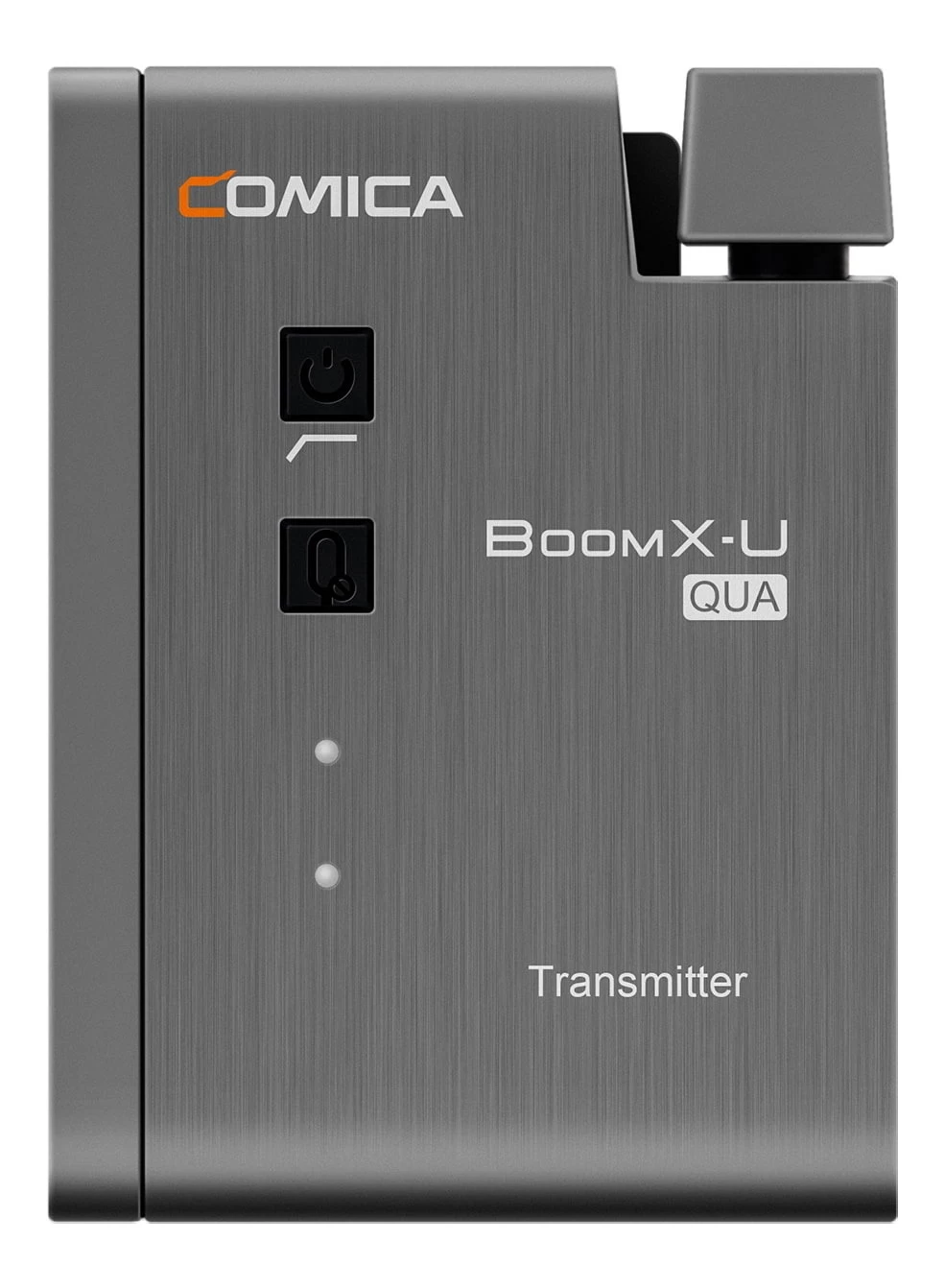

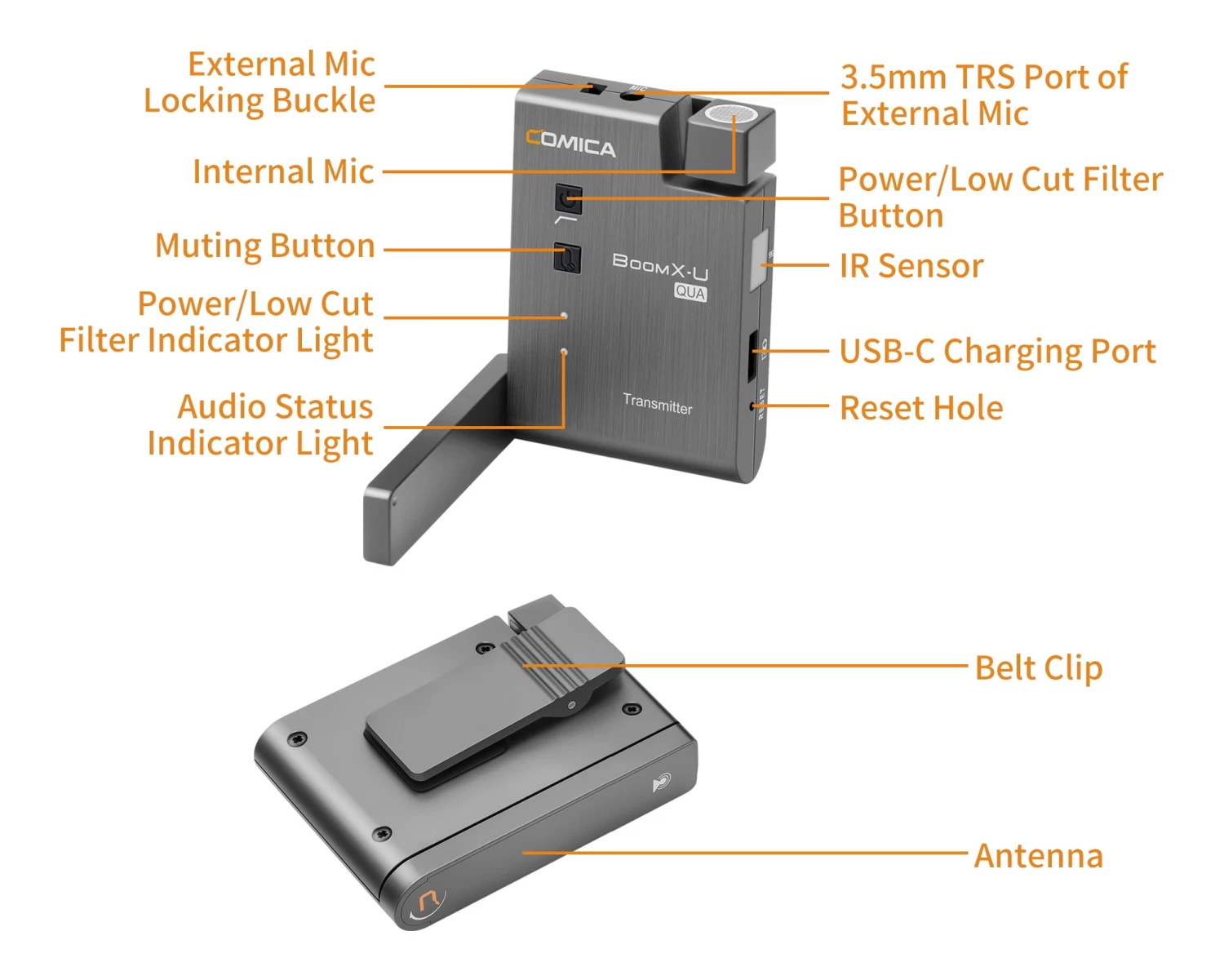

Transmitter (TX)

• Antenna: PCB Antenna
• Polar Pattern: Omnidirectional
• Frequency Response: 80Hz ~ 20kHz
• Sound Pressure Level: 100dB
• Signal/Noise: 75dB
• Equivalent Noise: 19dBA
• Sound Delay: <20ms
• External Mic Input Interface: 3.5mm TRS
• Battery: Li-ion Battery 700mAh 3.7V
• Battery Life: 6.5 Hours
• Net Weight: 45g
• Dimensions: 49mm x 22mm x 66mm
• Operating Temperature: 0℃~ 50℃
• Storage Temperature: -20℃~ 60℃

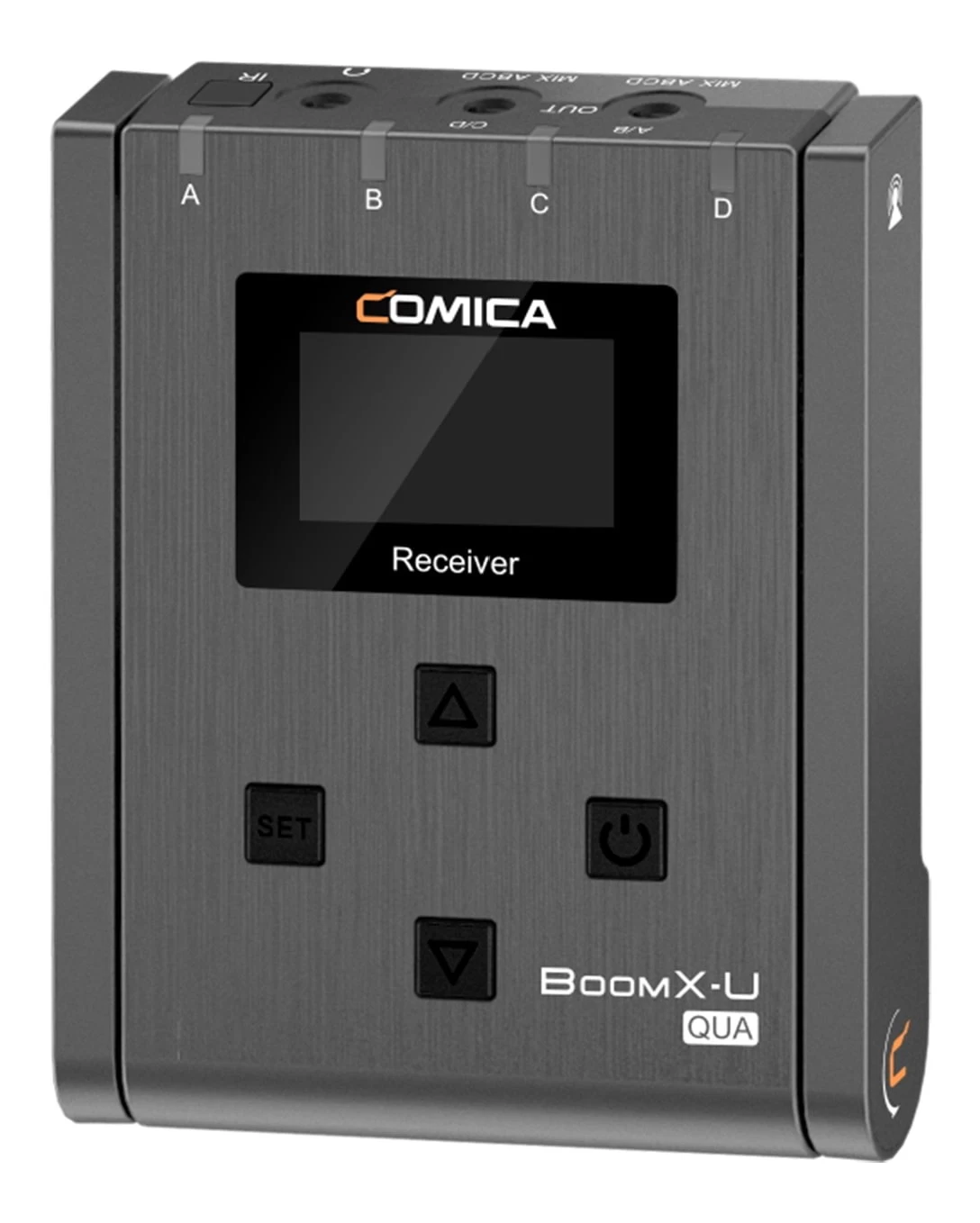

Receiver (RX)

• Antenna: PCB Antenna
• Receiving Sensitivity:  -90dBm
• Signal/Noise: 75dB
• Equivalent Noise: 19dBA
• Sound Delay: <20ms
• External Mic Input Interface: 3.5mm TRS × 2
• Monitor Interface: 3.5mm TRS/TRRS
• Battery: Li-ion Battery 1400mAh 3.7V
• Battery Life: 6.5 Hours
• Net Weight: 90g
• Dimension: 65mm x 17mm x 82mm
• Operating Temperature: 0℃~ 50℃
• Storage Temperature: -20℃~ 60℃

Frequency Parameters:
Transmitter (TX)

• Channel Number: 24 x 4
• Carrier Frequency of Group A: 568.125MHz~573.875MHz
• Carrier Frequency of Group B: 580.125MHz~585.875MHz
• Carrier Frequency of Group C: 574.125MHz~579.875MHz
• Carrier Frequency of Group D: 586.125MHz~591.875MHz
• Transmitting Power: 15dBm

Receiver (RX)

• Channel Number: 24 x 4
• Carrier Frequency of Group A: 568.125MHz~573.875MHz
• Carrier Frequency of Group B: 580.125MHz~585.875MHz
• Carrier Frequency of Group C: 574.125MHz~579.875MHz
• Carrier Frequency of Group D: 586.125MHz~591.875MHz
