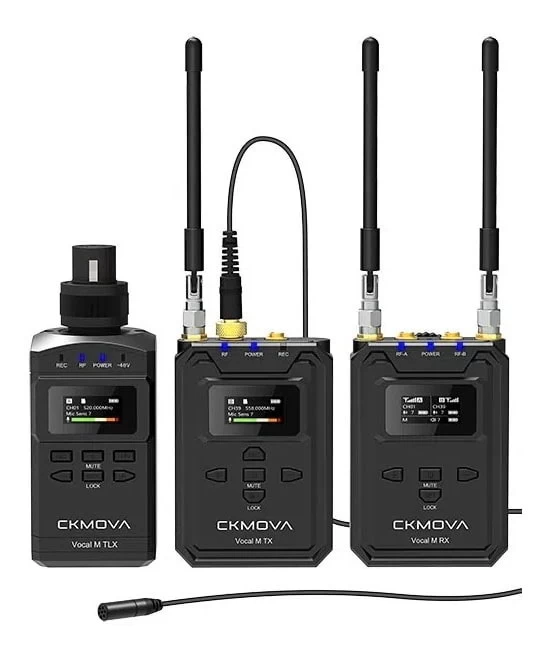

CKMOVA Vocal M V4 Professional UHF Dual-Channel Wireless Microphone Set

CKMOVA Vocal M V4 Professional UHF Dual-Channel Wireless Microphone  – XLR Transmitter, 3.5mm Bodypack Transmitter and Receiver Set
The CKMova Vocal M V4 is a complete reliable broadcast quality dual channel wireless UHF microphone XLR Plug-on Transmitter plus a 3.5mm TRS Bodypack Transmitter, and the Receiver set with independent audio recorder and built-in rechargeable battery. The Professional wireless solution for ENG, filmmakers, EEP, vloggers, Live Podcast, mobile journalist and content creators.

Broadcast Quality with Two Transmitters
The Vocal M V4 is a compact, lightweight and durable microphone system providing mature and stable UHF signal transmission delivering high-quality audio. Powerful features includes one plugon XLR transmitter with phantom power (therefore you can use either a dynamic or condenser XLR microphone), one 3.5mm bodypack transmitter with lavalier mic and line-input switchable, monitor on both transmitters and receiver, local memory recording and EQ settings on transmitter; mono & stereo switchable on receiver. The build-in OLED screen displays reception quality, battery status, audio level and more. A complete set for two presenters.

Package Includes:

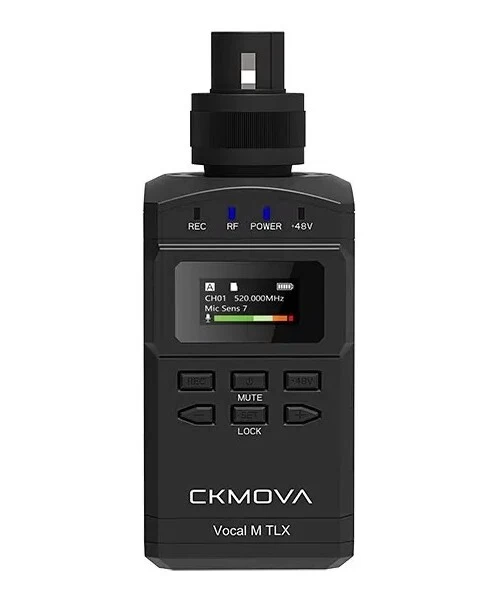

 – 1x Plug-on XLR Transmitter

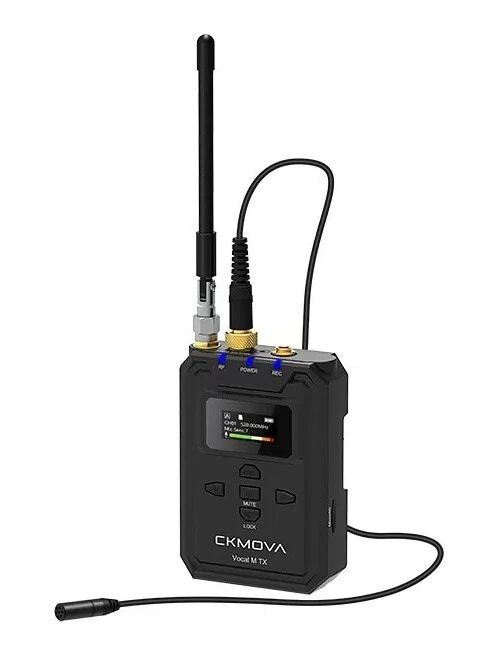

 – 1x Body-pack transmitter
 – 1x Portable receiver
 – 1x W-LM2 Omnidirectional Lavalier Microphone
 – 1x Locking 3.5mm TRS to 3.5mm TRS audio cable
 – 1x Locking 3.5mm TRS to 3-pin XLR audio cable
 – 3x Type-C charging cable
 – 1x Shoe mount adapter
 – 2x Belt clips
 – 3x Antennas

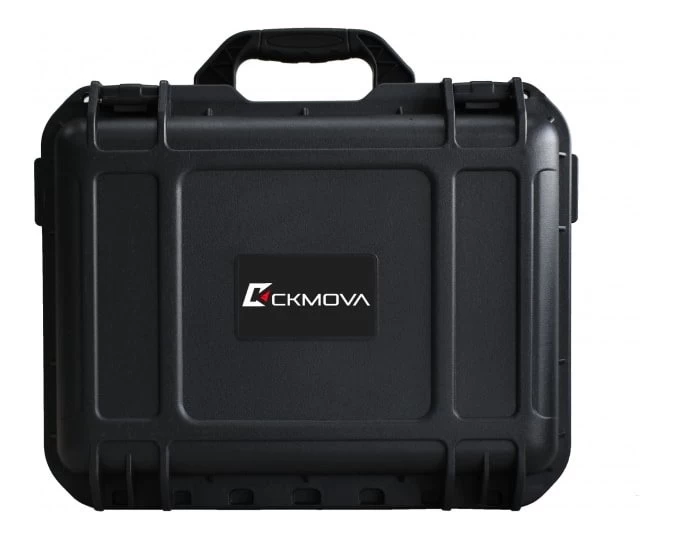

 – 1x Hard suitcase
 – 1x User manual and Warranty Card

Features:

• Professional Dual-Channel Wireless Microphone Set
• Dual-channel receiver
• 1x Plug-on XLR Transmitter with Phantom Power
• 1x 3.5mm Bodypack Transmitter with mic and line-input switchable
• OLED display on both transmitter and receiver
• Detachable and 360°switchable antenna
• Operating Range 150M (Line of sight)
• Mono & Stereo output switchable
• Locking 3.5mm TRS real-time headphone monitor on receiver
• Locking 3.5mm TRS Mic & Line input switchable
• Locking 3.5mm TRS real-time & play-back headphone monitor on transmitter
• Local 3.5mm TRS Mic input jack on receiver
• Support up to 32GB microSD card for memory recording
• Low cut filter (40Mhz/80Mhz/120Mhz)
• High frequency boost (1dB/2dB/3dB/4dB)
• Mute & keypad lock function on both transmitter & receiver
• Both receiver and transmitter with automatic protection shutdown
• Built-in rechargeable battery with 12 hours life
• Durable aluminum alloy construction

Specifications:

Model	CKMOVA Vocal M V4
Channel Group	A and B
Frequency Range	520 – 596 MHz
Antenna	Detachable Antenna
RF Output Power	50mW
Gain Range	30dB
Frequency Response	20Hz to 20kHz
Audio I/O	Locking 3.5mm TRS Mic & Line Input (Vocal M TX) Locking 3-pin Female XLR input (Vocal M TLX) Locking 3.5mm TRS Audio Output
Signal Processing	Low Cut Filter – (40/80/120 MHz) High Frequency Boost – (1 to 4 dB)
Sensitivity	-41±1dB (0dB=1V/Pa,at 1KHz)
Polar Pattern	Omnidirectional
Latency	＜6ms
THD	＜0.5%
Signal-to-Noise Ratio	＞80dB
Recording Format	WAV
Recording Media	MicroSD(Up to 32GB)
Power Requirements	Built-in
Battery or Type-C	DC 5V
Built-in Battery Capacity	1500mAh
Battery Life	12 Hours
Battery Charging Time	2 Hours
Housing Metal Dimensions	56mm x 80mm x 22mm (Vocal M TX) 45.5mm x 112mm x 44mm (Vocal M TLX) 56mm x 80mm x 22mm (Vocal M RX)
Weight	125g (TX Incl.Battery) 125g (TLX Incl.Battery) 135g (RX Incl.Battery)
Operating Temperature	0℃ ~ 50℃
Storage Temperature	–20℃ ~ 60℃
