CKMOVA Vocal M V2 Professional UHF Dual-Channel Wireless Microphone 2x Transmitter and Receiver Set
The CKMova Vocal M V2 is a broadcast quality dual channel wireless UHF microphone 2x Transmitter + 1x Receiver package, with an independent audio recorder and built-in rechargeable battery. The M-Series provides a professional, lightweight, durable system
Professional Solution
The CKMOVA Vocal M is a reliable broadcast quality dual channel wireless UHF microphone system with independent audio recorder and built-in rechargeable battery.The Professional wireless solution for filmmakers, vloggers, Live Podcast, mobile journalists and content creators. The Vocal M provides a stable UHF signal transmission delivering high-quality audio. It features headphones, monitor on both transmitter and receiver; Mic & Line input switchable, local memory recording and EQ settings on transmitter; mono & stereo switchable on receiver. The build-in OLED screen displays reception quality, battery status, audio level and more.
Package Includes:
– 2x Body-pack transmitter
– 1x Portable receiver
– 2x W-LM2 omnidirectional lavalier microphone
– 1x Locking 3.5mm TRS to 3.5mm TRS audio cable
– 1x Locking 3.5mm TRS to 3-pin XLR audio cable
– 3x Type-C charging cables
– 1x Shoe mount adapter
– 3x Belt clips
– 4x Antennas

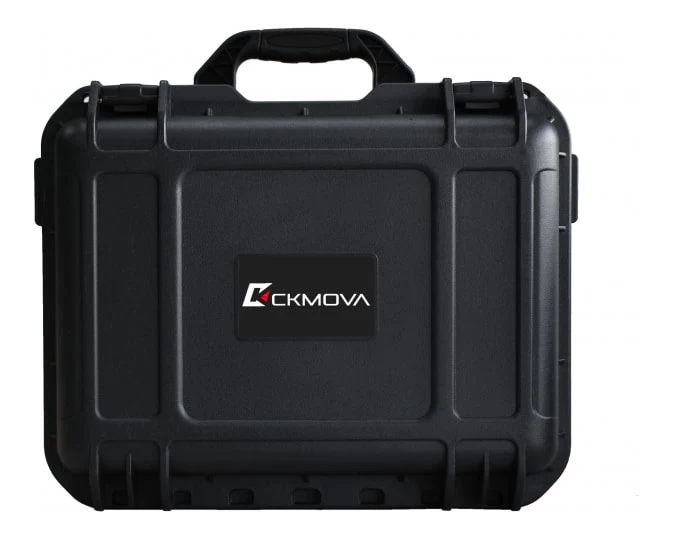

– 1x Hard suitcase
– 1x User manual
– 1x Warranty Card
Features:
- Professional Dual-Channel Wireless Microphone Set
- 2x Bodypack Transmitter
- Dual-channel receiver
- OLED display on both transmitter and receiver
- Detachable and 360°switchable antenna
- Operating Range 150M (Line of sight)
- Mono & Stereo output switchable
- Locking 3.5mm TRS Mic & Line input switchable
- Locking 3.5mm TRS real-time headphone monitor on receiver
- Locking 3.5mm TRS real-time & play-back headphone monitor on transmitter
- Local 3.5mm TRS Mic input jack on receiver
- Support up to 32GB microSD card for memory recording
- Low cut filter (40Mhz/80Mhz/120Mhz)
- High frequency boost (1dB/2dB/3dB/4dB)
- Mute & keypad lock function on both transmitter & receiver
- Both receiver and transmitter with automatic protection shutdown
- Built-in rechargeable battery with 12 hours life
- Durable aluminum alloy construction
Specifications:
| Channel Group | A and B |
| Antenna | 1/4A Detachable Antenna |
| RF Output Power | 50mW |
| Gain Range | 30dB |
| Frequency Response | 20Hz to 20kHz |
| Audio I/O | Locking 3.5mm TRS Mic & Line Input (Vocal M TX) Locking 3-pin Female XLR Input (Vocal M TLX) Locking 3.5mm TRS Audio Output |
| Signal Processing | Low Cut Filter-(40/80/120 MHz) High Frequency Boost-(1 to 4 dB) |
| Sensitivity | -41±1dB (OdB=1V/Pa,at 1KHz) |
| Polar Pattern | Omnidirectional |
| Latency | < 6ms |
| THD | <0.5% |
| Signal-to-Noise Ratio | >80dB SPL |
| Recording Format | WAV |
| Recording Media | MicroSD(Up to 32GB) |
| Power Requirements | Built-in Battery or Type-C DC 5V |
| Built-in Battery Capacity | 1500mAh |
| Battery Life | 12 Hours |
| Battery Charging Time | 2 Hours |
| Housing | Metal |
| Dimensions | 56mm x 80mm x 22mm (Vocal M TX) 45.5mm x 112mm x 44mm (Vocal M TLX) 56mm x 80mm x 22mm (Vocal M RX) |
| Weight | 125g (Incl.Battery Vocal M TX) 125g (Incl.Battery Vocal M TLX) 135g (Incl.Battery Vocal M RX) |
| Operating Temperature | 0°C — 50°C |
| Storage Temperature | -20°C — 60°C |
