Canare L-4E6S Star Quad Microphone Cable – BLACK – Per Meter

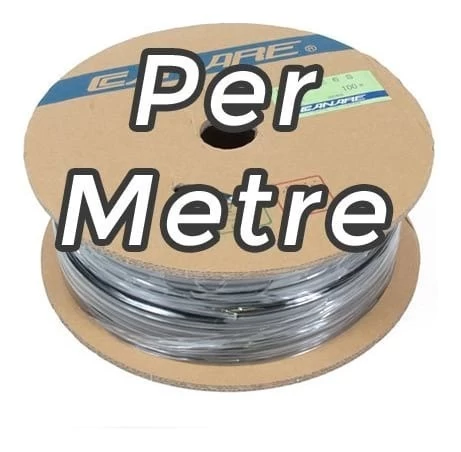

1 Meter of – Star Quad Microphone cable (L-4E6S)

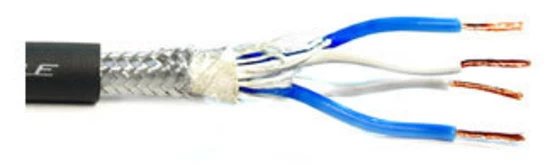

The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

How do I order 10m (meters) of cable?
Simply enter a QTY of 10 and we will ship a 10m length of cable.
Enter a QTY of 20 and we will ship a 20m length of cable, etc.

Features:

• Braided Copper Shield
• Flexible in Extreme Cold Weather
• Cross Linked PE Insulation
• Reduced Handling Noise
• Rejects EMI and RFI
• 10 Matte Color Jacket Selections

Applications:

• Microphones
• Portable Applications
• Audio Rack Wiring
• PA Systems
• Audio Patch Cords

MECHANICAL SPECIFICATIONS
Model	Std. Lng. ft. (m)	Wt Std. Lng. lbs (kgs)	Nom. O.D. in. (mm)	Jacket Nom. Thick. in. (mm)	Brittle Point F° (C°)	No. of Cond.	Insul. Type* Thick mil	Cond-AWG (Qty./mil) Cross Sec. Area mil.² **Quad AWG	Pitch Twist Quad in. (mm)	Shield Cover- age
L-4E6S	656ft (200m) 1000ft (305m)	24 (11) 35 (16)	.236 (6.00)	PVC .044 (1.12)	-56 (-49)	4 2 Blue 2 Wht	IPE 15.7	AC – #24 40/3.15 310 #21	.79 (20)	>95% TAC Braid

*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE/QUAD
Model	Cond. D.C.R. ohm/1000ft (ohm/100m)	Shield D.C.R. ohm/1000ft (ohm/100m)	Nom. Cap. *** pF/ft (pF/m)	Nom. Cap. † pF/ft (pF/m)	Nom. Imp. (ohm)	Nom. Atten. V/1000ft (V/100m)	Group Delay Time nS/ft (nS/m)
L-4E6S	<29.9 (<9.8)	<9.1 (<3.0)	46 (150)	57 (185)	44	0.9 (0.3)	1.80 (5.9)

***Capacitance between twin Blue and twin White conductors.
†Capacitance between conductors to shield.
