Cable Techniques CT-BX3M-K Low-Profile Right Angle Male XLR Connector – Black

Cable Techniques CT-BX3M-K Low-Profile Right Angle Male XLR Connector – Black

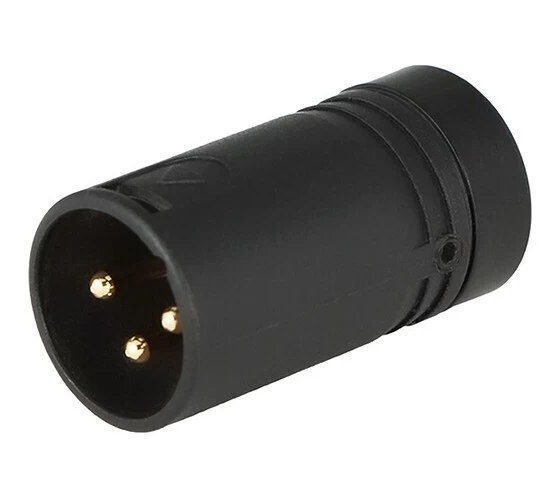

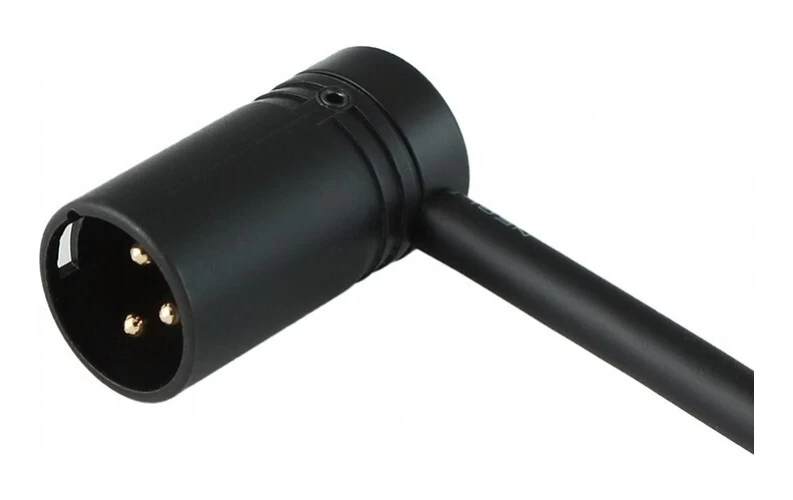

The Cable Techniques CT-BX3M-K is a low profile, right angle male XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o’clock or 9 o’clock. Matte black shell, gold pins. Black cap colour. Accepts cable diameters up to 3.4mm.

Available in 10 optional interchangeable Cap colours: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.

The supplied standard cap is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697 and Sommer Isopod SO-F22.

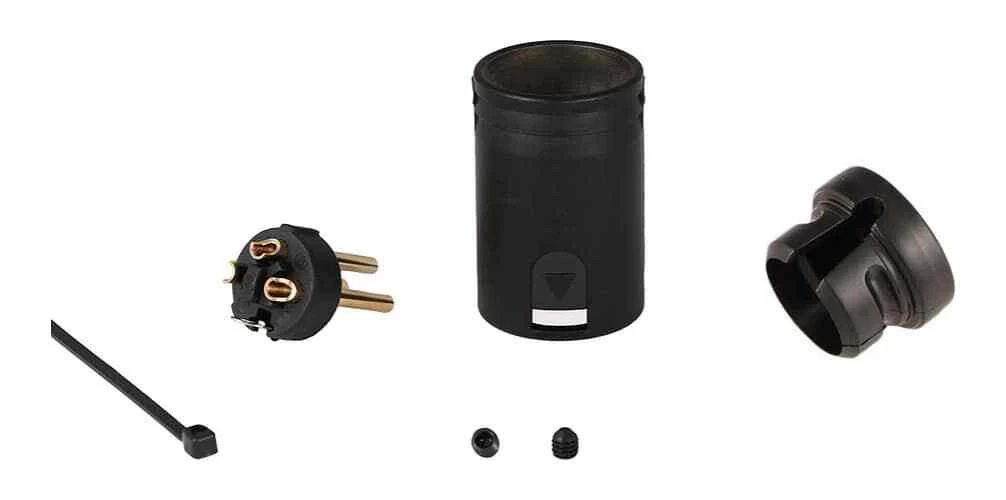

Included Components:

• 1x Shell
• 1x 3-pin Insert
• 2x set screws
• 1x zip-tie
• 1x colour cap

Specifications:

Termination Style	Solder
Contact Material	Bronze
RoHS	Yes
Cable Outlet Diameter	+/- 3.2mm, 3.4mm MAX
Shell	Zinc Diecast
Voltage Rating	50V
Current Rating	10A
Weight	20g
Dimensions	35mm x 19mm x 19mm w/ Cap
In-Use Length	25mm exposed length in-use
Set Screw Hex Size	1.5mm
Set Screw Material	Anodized Stainless Steel
Cap Angle Adjust	60° to 120° and 240° to 300°
Plastic Cap Material	Molded ABS thermoplastic
Shell Colour	Black
Life	>1,000 operations
Thermal Range	-50°C to + 80°C
