Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector – Black

Cable Techniques CT-BX3FL-K Low-Profile Right Angle Female XLR Connector – Black

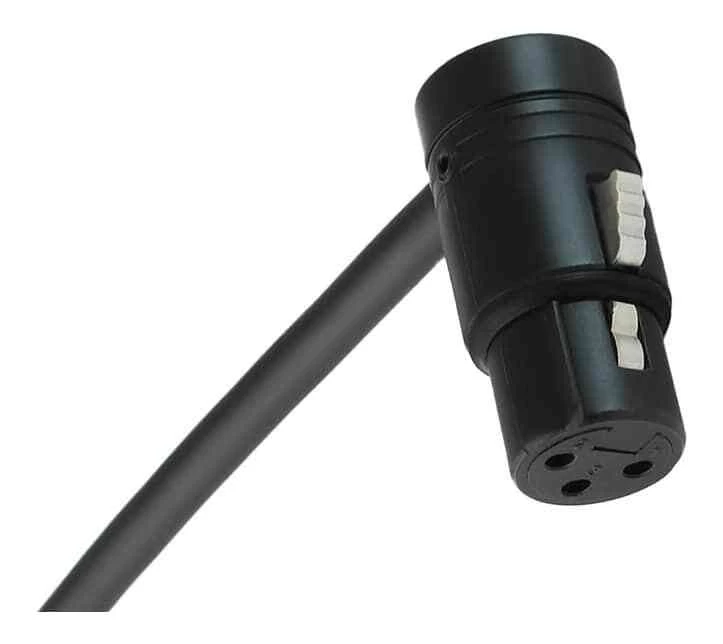

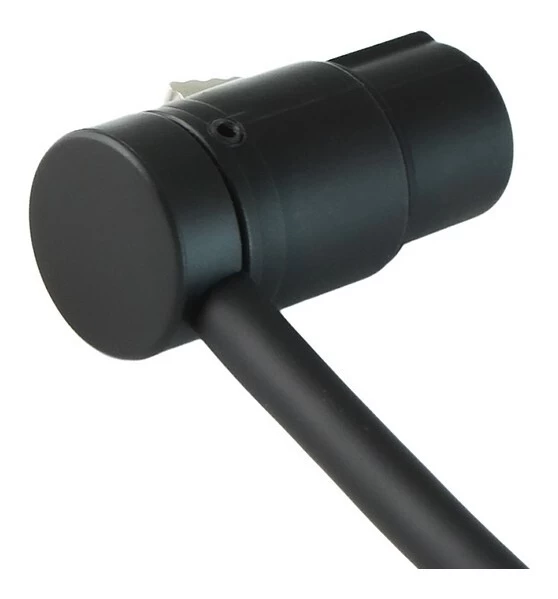

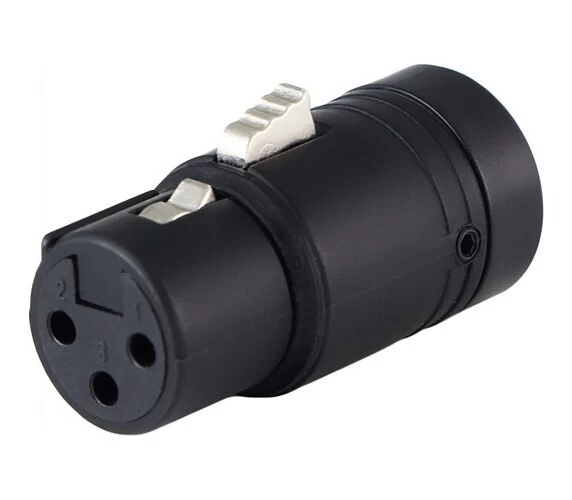

The Cable Techniques CT-BX3F-K is a low profile, right angle female XLR 3-pin connector, allowing you to have a cable exiting 120 degrees at around 3 o’clock or 9 o’clock. Matte black shell, gold pins. Black cap colour. The large cap accepts cable diameters from 3.8mm to 6mm.

Available in 10 optional interchangeable Cap colours: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.

The supplied large cap is compatible with super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S and many more.

Included Components:

• 1x Shell
• 1x 3-pin Insert
• 2x set screws
• 1x zip-tie
• 1x colour cap

Specifications:

Termination Style	Solder
Contact Material	Bronze B shell
RoHS	Yes
Cable Outlet Diameter	+/- 5.8mm, 6mm MAX
Shell	Zinc Diecast
Voltage Rating	50V
Current Rating	10A
Weight	34g
Dimensions	37mm x 19mm x 19mm w/ Cap
In-Use Length	25mm exposed length in-use
Set Screw Hex Size	1.5mm
Set Screw Material	Anodized Stainless Steel
Cap Angle Adjust	60° to 120° and 240° to 300°
Plastic Cap Material	Molded ABS thermoplastic
Shell Colour	Black
Life	>1,000 operations
Thermal Range	-50°C to + 80°C
