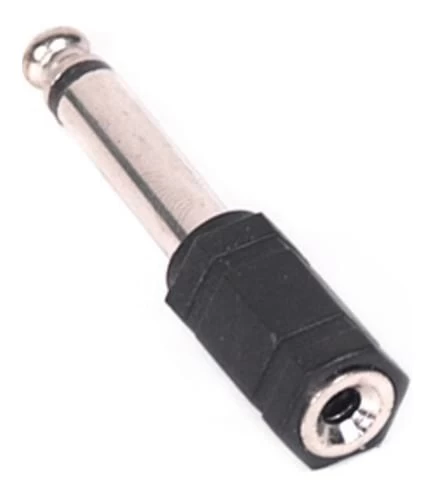

Audio Adapter – 1/8″ Female To 1/4″ Male – Stereo To Mono

1/8″ FEMALE TRS – 1/4″ MALE TS Mono
This handy little adapter enables the user to plug a 1/8″ (3.5mm) stereo TRS cable, into a 1/4″ (6.35mm) input.

True Stereo Signal Combination into Mono
This adapter will combine both the left and right channels of audio from a headphone mini jack into a single mono signal containing equal parts of both the left and right channels. Great for plugging an ipod or laptop into a mono input on a mixer or guitar amp.

Split a Mono Signal into a ‘Stereo’ Signal
Can also be used in the opposite fashion, to split a mono signal from a 1/4″ jack connector, into 2 identical signals that will pass through the Tip and Ring of the 3.5mm mini jack connector. Ideal for recording a mono signal into stereo line level jacks on PC sound cards.

NOTE: This adapter is not suitable for use as a headphone adapter. If using with a stereo device (Ipod, MP3, Laptop), only one channel of the music will be heard. To hear both channels, use a Stereo TRS adapter.

Features:

• Connectors: 1/8″ or 3.5mm (f) TRS / 1/4″ or 6.35mm (m) TS
• STEREO TO MONO
• Wiring:
  3.5mm Tip = 6.35mm Tip
  3.5mm Ring = 6.35mm Tip
  3.5mm Sleeve = 6.35mm Sleeve
