24 Channel Multicore Cable W/ Stage Box – 20m

SWAMP 24 Channel Multicore Cable w/ Stage Box

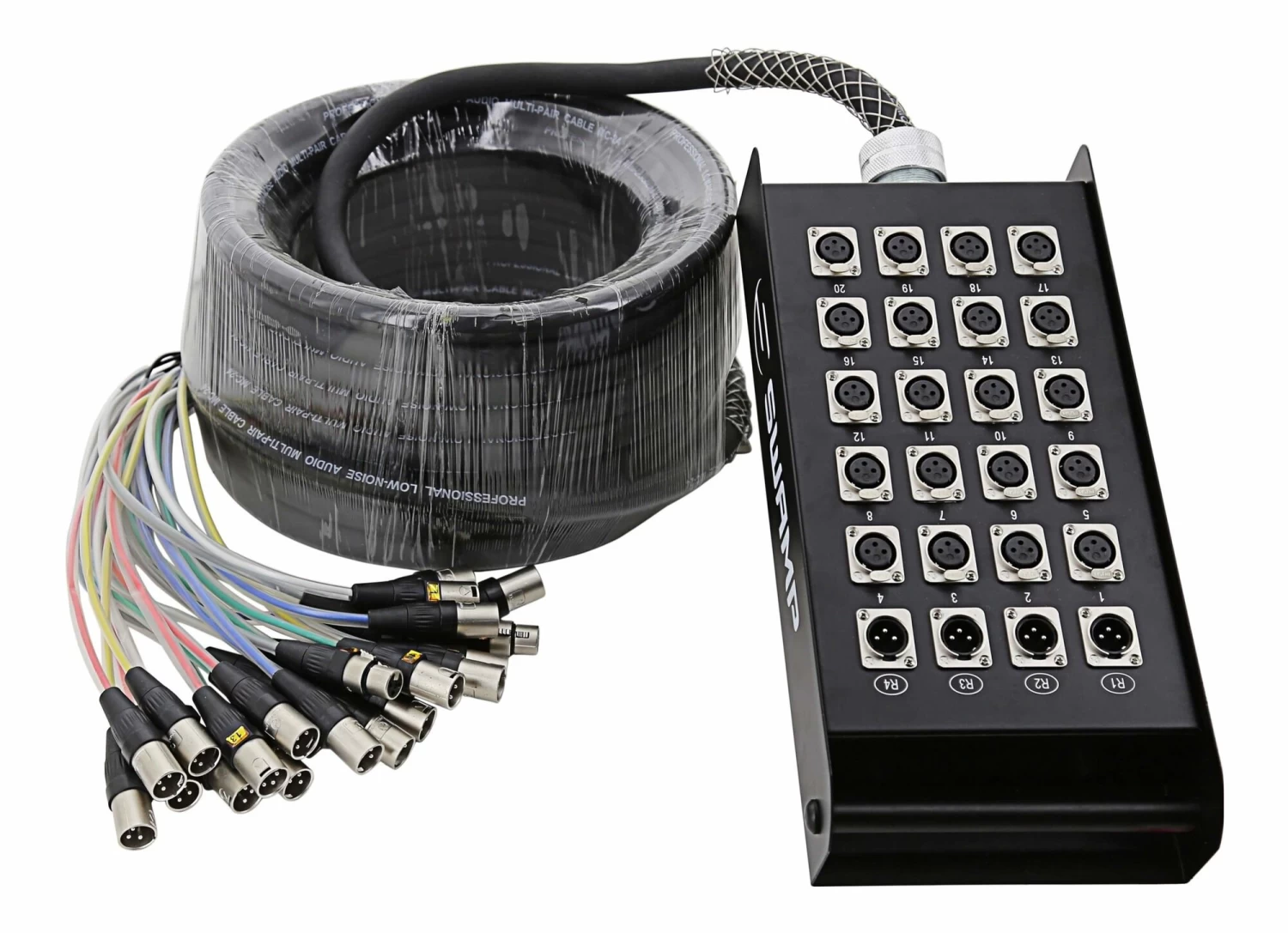

This multicore and stage box is configured with 20 balanced XLR send and 4 balanced XLR or TRS return channels. The system includes a 24-way multicore cable with a rugged metal stage box housing and an inverse-gendered XLR breakout fan for patching to your mixer. All the connectors are quality Ningbo Neutrik connectors to ensure consistent high performance in heavy use environments.

20 Input Channels
Featuring 20 input channels for sending microphone and instrument (DI Boxes) signals from the stage box to a mixing desk. Performers simply plug their microphone into their assigned channel number on the stage box.

4 Return Channels
Return channels are used to carry FOH (front of house) or AUX (auxiliary) signals from the mixer or out-board processing gear, back to the stage box. Return channels A – D allow for connection via either an XLR or TRS output on the stage box.

What components are used?
Each channel in a swamp multicore cable features PE insulated twisted-pair conductors wrapped in a spiral ground shield with an additional foil shield before a PVC jacket. Perfect for noiseless operation with balanced audio signals. Industry standard Ningbo Neutrik Yongsheng connectors terminate each channel, to ensure our units can withstand the rigours of a touring show.

Why choose a SWAMP Stage Box?
Put simply, we offer a quality product at an unbeatable price. SWAMP’s multicore stage box range is constructed with materials that are durable, professional and most importantly maintain signal integrity.

Features:

• 20 Balanced Input/Send Channels
• 4 Balanced Return Channels:
  • Stage Box: 4x XLR(m)
  • Fan: 4x XLR(f)
• Connectors – Ningbo Neutrik Yongsheng:
  • Stage box (YS145, YS146)
  • Fan: (YS136N, YS137N)
• Copper Conductors: Twisted pair (0.10mm*20*2)
• Shield: Spiral wrapped (0.10mm*30) + Aluminium Foil outer shield
• Cable Model: SMAC-24 (20mm O.D)

Warranty: This item includes a SWAMP 1 year warranty. All warranty claims must be made through SWAMP Industries.

• Length: 20m
